Removing and installing/replacing adapter on rear axle differential

Necessary preliminary tasks:

• Remove REAR AXLE FINAL DRIVE .

Removal:

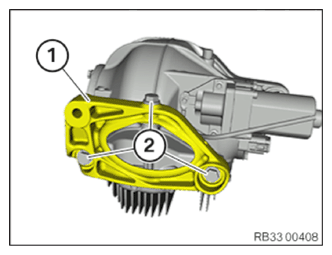

Unfasten screws (2).

Remove adapter (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position adapter (1).

Tighten down screws (2).

Tightening torque 33 17 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the REAR AXLE DIFFERENTIAL .
