Completely removing and installing front axle with engine and transmission (S55 engine)

Special tools required:

00 9 030
13 5 161
13 5 162

Attention!

Removal weight approximately 250 kg to 450 kg.

Check vehicle payload.

If necessary, load front footwell with approx. 200 kg.

Note safety information of TABLE LIFT !

Necessary preliminary work:

Position vehicle on vehicle hoist so its weight is centered.
Clamp off BATTERY .
Move ENGINE COMPARTMENT LID into service position.
SUCTION OFF air conditioning.
Remove CHARGE AIR DUCT on the throttle valve.
Remove FAN COWL WITH ELECTRIC FAN .
Remove complete propeller shaft. Refer to COMPLETELY REMOVE AND INSTALL THE PROPELLER SHAFT MADE OF STEEL (INSERTED AT THE REAR) or REMOVING AND INSTALLING CARBON PROPELLER SHAFT (INSERTED) COMPLETE .
Remove left and right brake caliper and place to one side. Refer to REMOVING AND INSTALLING/REPLACING BRAKE PADS ON BOTH FRONT DISC BRAKES (BREMBO) or REMOVING AND INSTALLING/REPLACING THE BRAKE PADS OF BOTH FRONT DISC BRAKES (CARBON CERAMIC BRAKES) .
Remove TENSION STRUT ON SPRING STRUT DOME .
Remove left and right WHEEL ARCH COVER (FRONT SECTION) .
Remove left and right auxiliary radiator. Refer to REMOVING AND INSTALLING/REPLACING LEFT AUXILIARY RADIATOR and REMOVING AND INSTALLING/REPLACING RIGHT AUXILIARY RADIATOR .
Remove the VACUUM LINE at the separation point.
Release coolant hoses from radiator.

Position refrigerant lines (3) correctly.

Tighten down screws (4).

Tightening torque 64 52 1AZ .

NOTE: Replace sealing rings.
Use special tool 00 9 030 to install sealing rings without damaging them.

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Catch and dispose of escaping fuel with auxiliary materials.

Observe country-specific waste disposal regulations.

Unfasten fuel line (1) and disconnect.

Unlock and detach tank ventilation line of carbon canister (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Close off fuel line (1) with special tool 13 5 161.

Close off fuel line (2) with special tool 13 5 162.

Courtesy of BMW OF NORTH AMERICA, INC.

Bring steering to center position.

Release clamping bolt (1).

Detach the steering shaft (2) from the steering gear

Part : Replace clamping bolt (1).

Tightening torque 32 31 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration: DKG

Release nut (1).

Release ground cable (2) from body.

Courtesy of BMW OF NORTH AMERICA, INC.

Manual gearbox only

Pull off retainer (2).

Disengage gearshift rod (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Manual gearbox only

Release and remove bearing journals (1) in direction of arrow.

Lift gearshift arm out upwards.

Installation note:

Grease bearing journals (1).

Specified grease: refer to OPERATING FLUIDS .

Courtesy of BMW OF NORTH AMERICA, INC.

Manual gearbox only

NOTE: Pressure line of clutch slave cylinder remains connected.

Attention!

Slowly relieve tension on clutch slave cylinder otherwise air is drawn in through sealing cup.

Release nuts (1) and remove clutch slave cylinder.

Part : Replace nuts.

Tightening torque 21 52 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Coordinate determination always begins at the top.

Position engine assembly on tab top A.

Position transmission on table top B.

Table top B is adjustable in a longitudinal direction (see arrow in illustration).

Courtesy of BMW OF NORTH AMERICA, INC.

Structure of table lift.

Position retaining elements (1) with fixture (50) on table top A for front axle support at coordinates 7/2 and 7/7.

Position retaining elements (2) with fixture (80) on table top A for front axle support at coordinates 2/2 and 2/7.

Courtesy of BMW OF NORTH AMERICA, INC.

Position retaining elements (3) with fixture (60) on table top B for transmission cross member at coordinates 3/2 and 4/6.

Position additional retaining element (4) with fixture (80) on table top B under transmission oil sump at the coordinates 5/4.

Position fixture (5) on table top A for swivel bearing at coordinates 4/1 and 5/8.

NOTE: Possible mounting points for the front axle support.
Note position 1 and 2.

Courtesy of BMW OF NORTH AMERICA, INC.

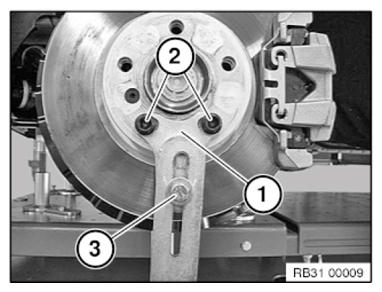

Secure fixture of swivel bearing (1) on brake disc with wheel studs (2).

Secure adjusting screw (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration: DKG

Release screws (1).

Tightening torque 22 32 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Completely remove front axle with engine and transmission with lift 81 22 2 184 136 carefully downwards.

NOTE: Graphic shows N63 hybrid drive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Position the table lift beneath the vehicle.

The inclination of the table lift (1) can be adjusted using the adjusting screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check and add engine oil.
Fill and bleed hydraulic system.
Check line connections for leak tightness
Check and clear the fault memory.
