Removing and installing/replacing charge air duct to throttle valve (S55 engine)

Necessary preliminary work:

• Remove CHARGE AIR COOLER .
• Remove LEFT INTAKE FILTER HOUSING

Removal:

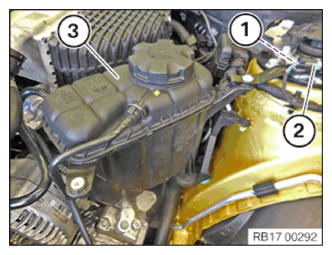

Release connector (2) on holder.

Loosen screw (1).

Pull expansion tank (3) upwards out of rubber mount and place aside.

Courtesy of BMW OF NORTH AMERICA, INC.

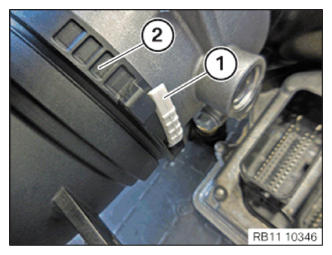

Release clamping ring (1) on charge air duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove clamping ring (1) from charge air duct (2).

Remove charge air duct (2) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

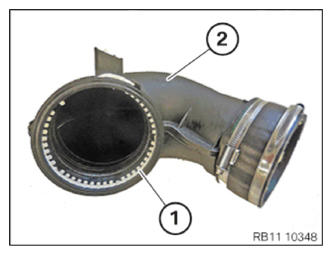

Check clamping ring (1) on charge air duct (2) and replace as necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install charge air duct (2).

Install clamping ring (1) in charge air duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.

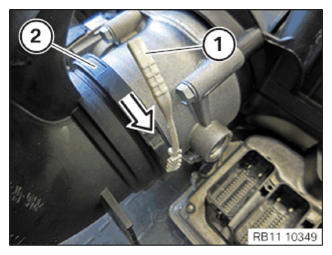

Lock clamping ring (1) in charge air duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert expansion tank (3) in rubber mount.

Install connector (2) on holder.

Tighten screw (1).

Tightening torque 17 10 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install CHARGE AIR COOLER .
• Install LEFT INTAKE FILTER HOUSING .
