51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove panel for pedals, refer to REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Remove front entrance cover strip (inside), refer to REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .

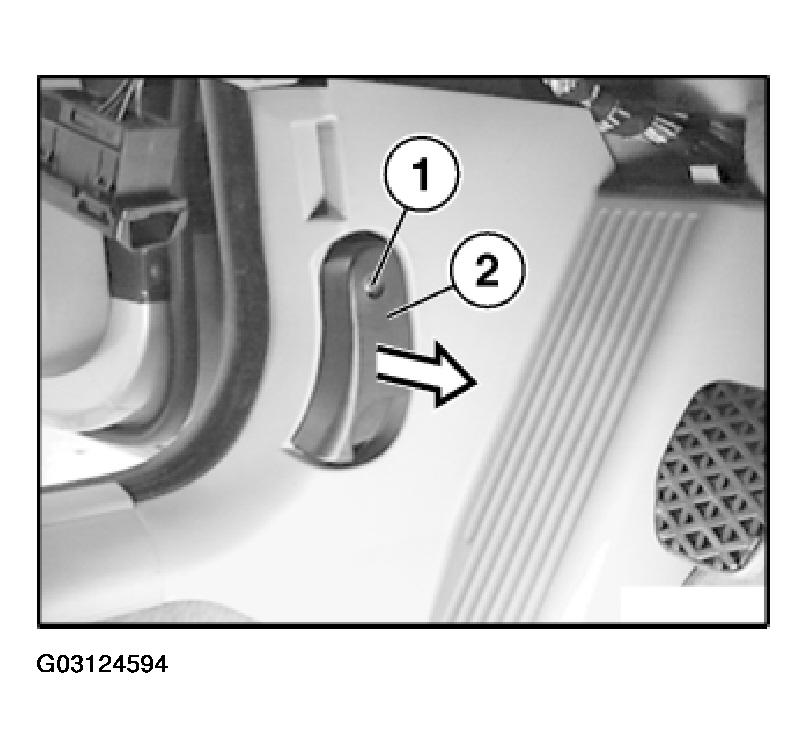

Release screw (1) and remove release lever (2).

Fig 1: Removing Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

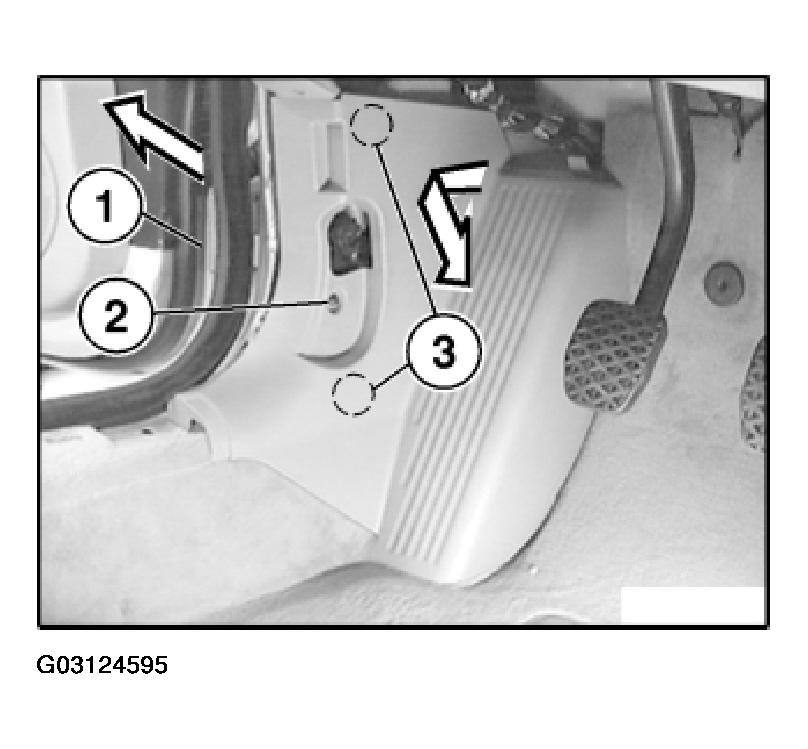

Remove mucket (1) in area of footwell trim.

Release screw (2).

Push footwell trim (3) a little to rear (guides (3) are unlocked) and detach footwell trim towards inside.

Fig 2: Detaching Footwell Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

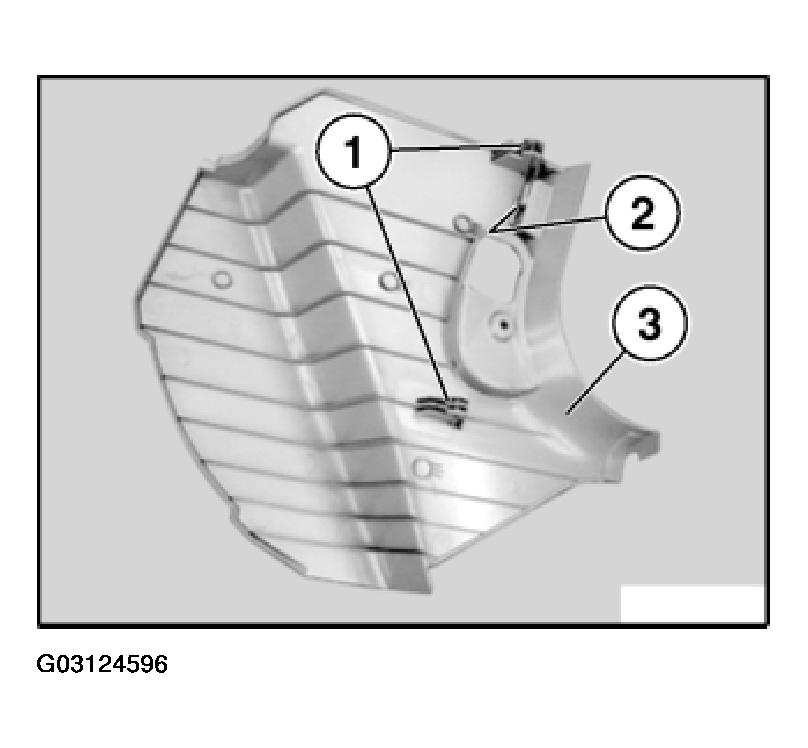

Guides (1) must not be damaged.

Replacement only:

Lift out insert (2) in footwell trim (3).

Fig 3: Identifying Guides & Insert In Footwell Trim

Courtesy of BMW OF NORTH AMERICA, INC.
