51 45 185 Removing and installing/replacing trim for pedal assembly

Move steering column upwards to max. possible position.

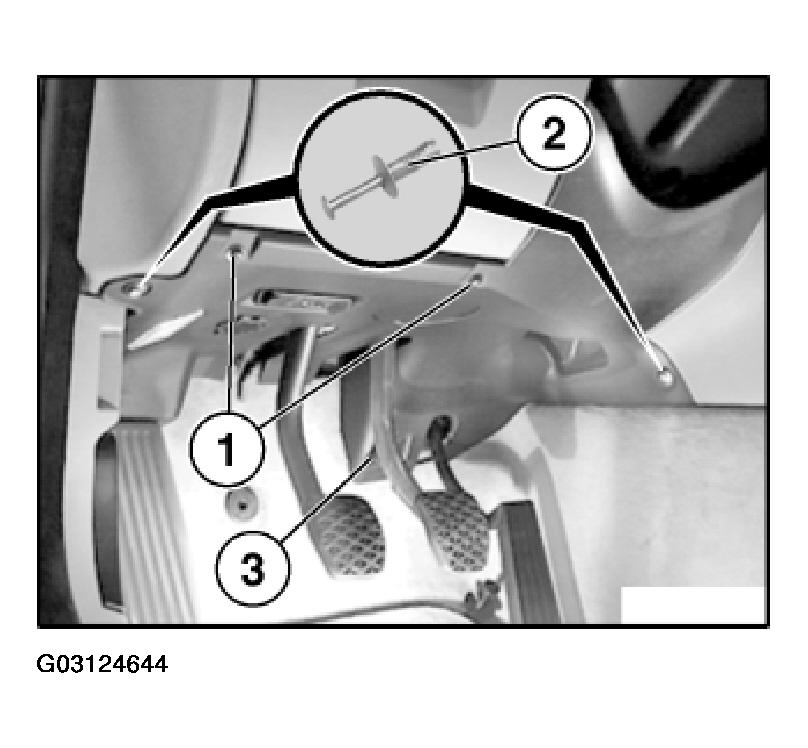

Release screws (1) and expansion rivets (2).

Unlock rotary clip (3) (turn through 90°).

Fig 1: Removing Screws, Expansion Rivets & Rotary Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock left/right retaining clips (1) and fold trim (2) down.

Fig 2: Unlocking Left/Right Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

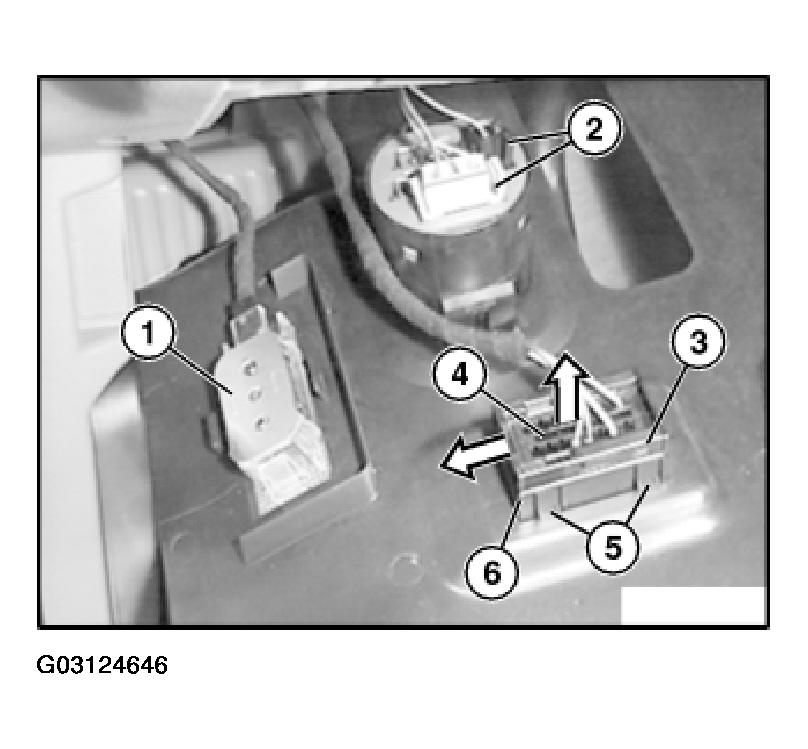

Remove and feed out footwell light (1).

Disconnect plug connection (2) from gong.

Release lock (3) and press out plug (4) through opened OBD socket.

Replacement only:

Release locks (5) and remove OBD socket (6).

OBD = on-board diagnosis

Fig 3: Removing OBD Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

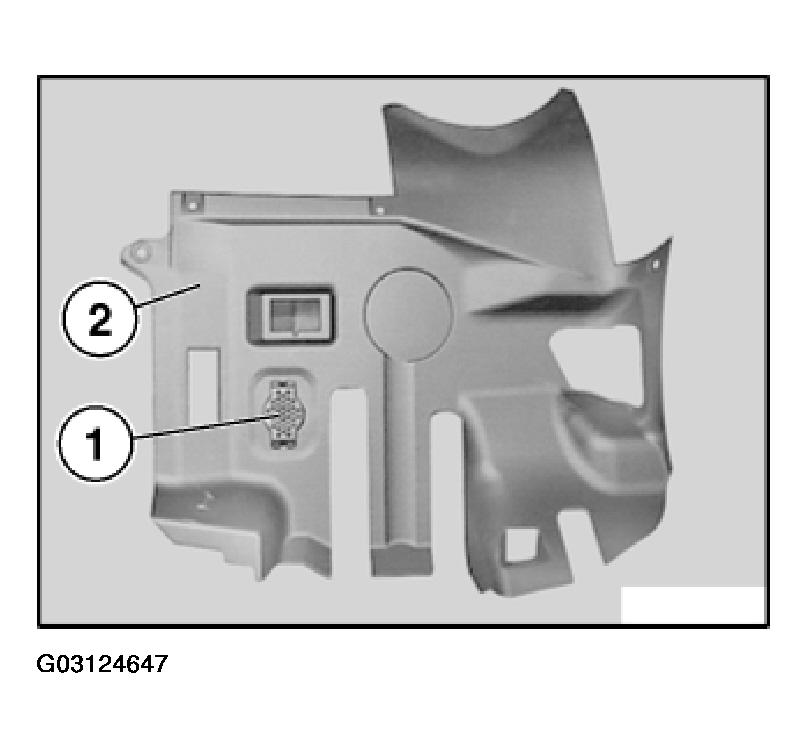

Unlock gong (1) and remove from trim (2).

Fig 4: Removing Gong From Trim

Courtesy of BMW OF NORTH AMERICA, INC.
