51 47 000 Removing and installing/replacing front (inside) left or right entrance cover strip

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove entrance cover strip (1) with clips (2) towards top.

If necessary, lever out clips from floor plate.

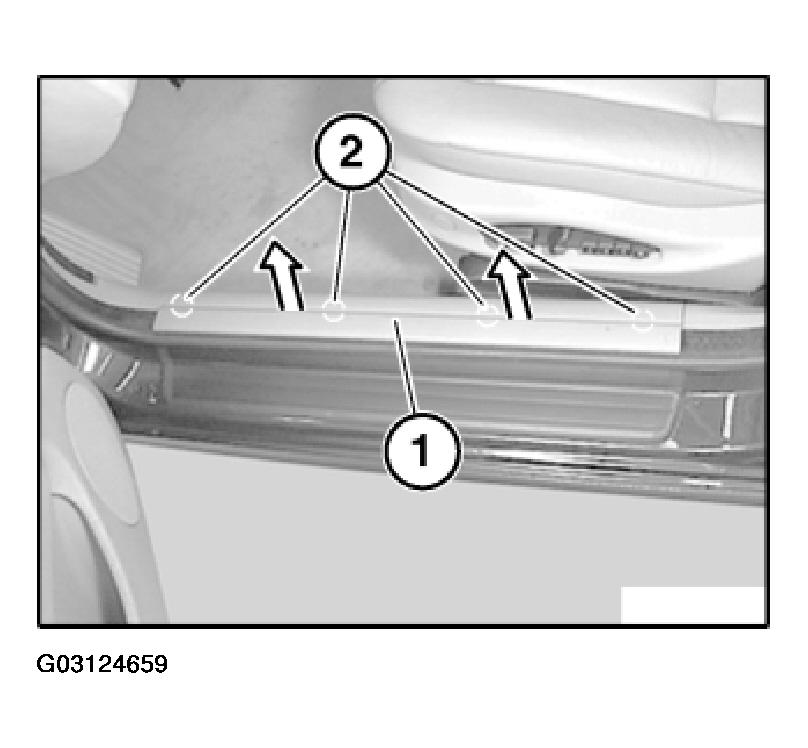

Fig 1: Removing Entrance Cover Strip With Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push clips (1) onto entrance cover strip (2).

If necessary, replace faulty clips (1).

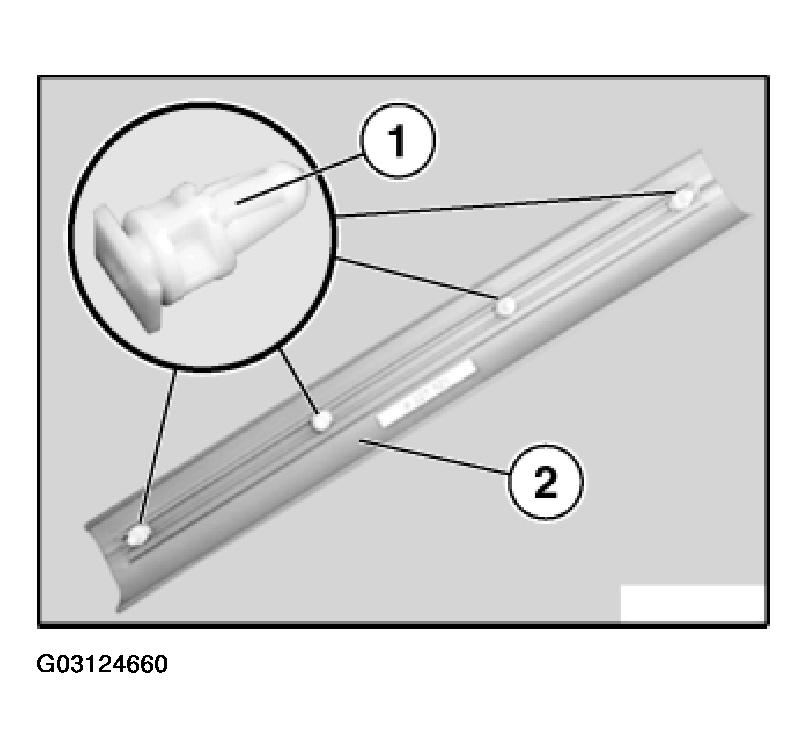

Fig 2: Installing Clips Onto Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
