51 12 742 Replacing one shock absorber for rear bumper (touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

(bumper removed)

If necessary, remove rear bumper, refer to REMOVING AND INSTALLING COMPLETE REAR BUMPER .
Remove cover or parcel shelf in trunk, refer to REMOVING AND INSTALLING/REPLACING COVER AND PARCEL SHELF IN TRUNK (TOURING)

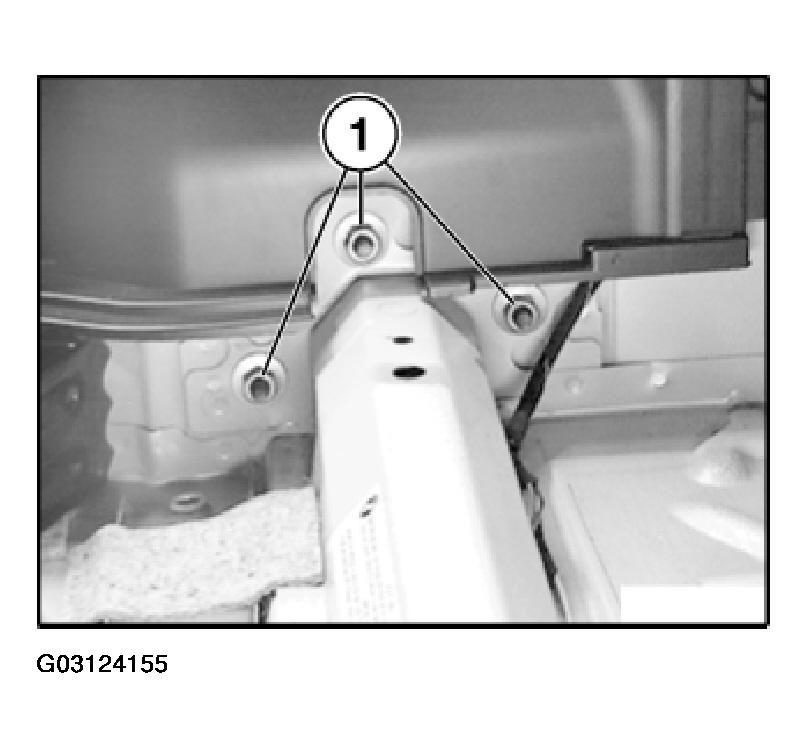

Release nuts (1) on Inside and remove shock absorber.

Installation:

Tightening Torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Releasing Nuts
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

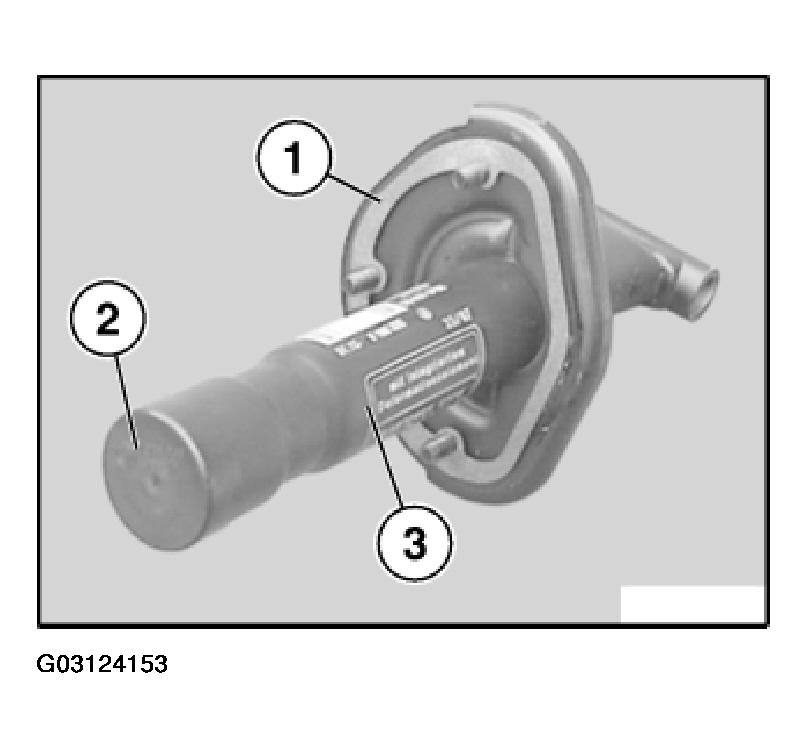

If necessary, fit a new gasket (1) and a new cover (2) to shock absorber (3).

Fig 2: Installing New Gasket
Courtesy of BMW OF NORTH AMERICA, INC.

Adjust bumper:

Ideal adjustment:

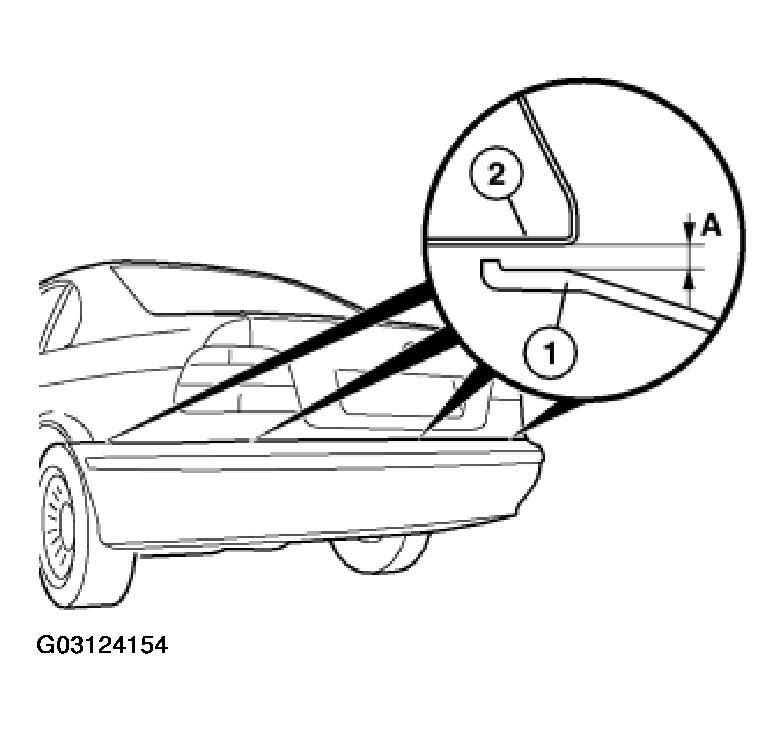

Distance (A) must be the same all around between the bumper and body cutout.

Dimension (A) = 5 +/- 1 mm

Fig 3: Identifying Distance (A)

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken inside nuts (1) on left/right and adjust height of bumper.

Installation:

Tightening Torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 4: Identifying Slacken Inside Nuts On Left/Right
Courtesy of BMW OF NORTH AMERICA, INC.
