51 12 000 Removing and installing complete rear bumper

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 150

NOTE: Version with trailer coupling:
Remove finisher strip.
All models:
Remove trim on bumper trim at rear. See 51 12 080 Removing and installing/replacing finisher strip on bumper trim

Sedan and touring:

Stick on fabric adhesive tape (1) below screw to bumper (risk of damage).

Attach special tool 00 2 150 to ratchet and release screw on left/right.

NOTE: Saloon/sedan with M aerodynamics package only:
Screw can be removed towards bottom.

Installation:

Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Identifying Stick On Fabric Adhesive Tape

G03124134

Courtesy of BMW OF NORTH AMERICA, INC.

Sedan and touring:

Pull bumper (1) towards rear/bottom and remove screw (2) towards rear/bottom.

Fig 2: Pulling Bumper Towards Rear/Bottom

G03124135

Courtesy of BMW OF NORTH AMERICA, INC.

Coupe and Convertible:

Attach special tool 00 2 150 to ratchet and release screw on left/right.

Installation:

Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 3: Attaching Special Tool 00 2 150 To Ratchet

G03124136

Courtesy of BMW OF NORTH AMERICA, INC.

Coupe and Convertible:

Pull bumper (1) towards rear/bottom and remove screw (2) towards front/bottom.

Fig 4: Removing Screw Towards Front/Bottom

G03124137

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control (PDC):

Unclip left cable holder (1) towards bottom.

Fig 5: Unclipping Left Cable Holder

G03124138

Courtesy of BMW OF NORTH AMERICA, INC.

Construction status from 12/98:

Release nut (1) on left/right.

Remove bracket (2) from bumper (3).

Installation:

Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 6: Releasing Nut

G03124139

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivet (1) on left/right.

Lift out wheel arch finisher (2) on left/right and pull bumper (3) a little to rear.

All except Convertible with TV:

Pull off bumper (3) towards rear.

Fig 7: Pulling Off Bumper Towards Rear

G03124140

Courtesy of BMW OF NORTH AMERICA, INC.

Convertible with TV only:

Remove storage tray in trunk on left.

Disconnect plug connection (1).

Fig 8: Disconnecting Plug Connection

G03124141

Courtesy of BMW OF NORTH AMERICA, INC.

Convertible with TV only:

Pull out cable plug with grommet (1) towards rear.

Release nut (2) on left/right.

Pull off bumper (3) towards rear.

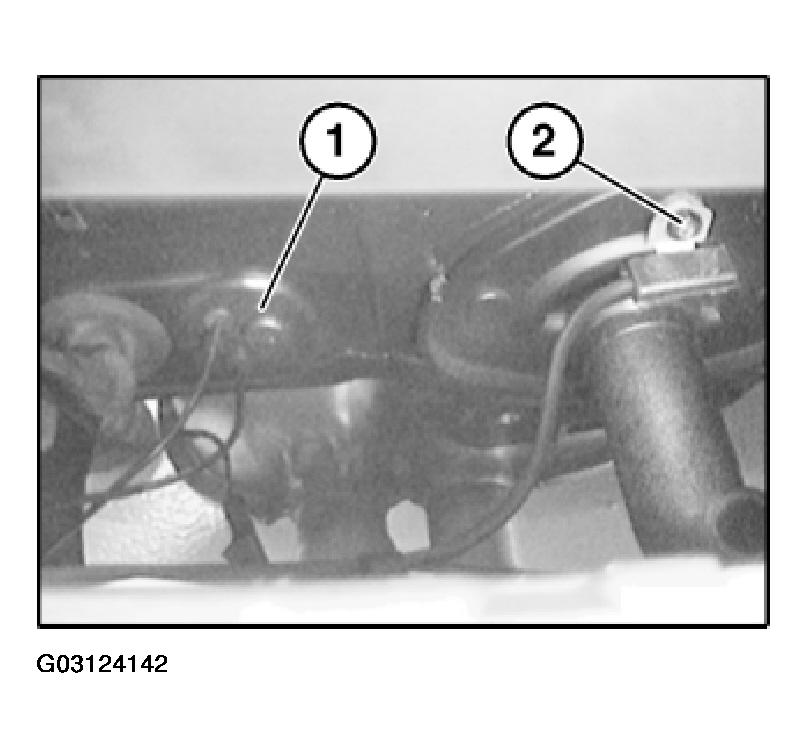

Fig 9: Pulling Off Bumper Towards Rear

G03124142

Courtesy of BMW OF NORTH AMERICA, INC.
