51 47... Removing and installing/replacing cover and parcel shelf in trunk (Touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove flap in trunk trim panel, left or right, refer to REMOVING AND INSTALLING/REPLACING FLAP IN TRUNK TRIM PANEL, LEFT OR RIGHT (TOURING) .

Right side:

Remove trim for spare wheel.

Release nuts (1) and remove tray (2) towards top.

Fig 1: Removing Tray (Right Side)

G03124651

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit rubber mount (1) on tray at top.

Fig 2: Fitting Rubber Mount On Tray At Top

G03124652

Courtesy of BMW OF NORTH AMERICA, INC.

Version without battery in the luggage compartment:

Fit rubber mount (1) on tray (2) at bottom.

Fig 3: Fitting Rubber Mount On Tray At Bottom (Version Without Battery In The Luggage Compartment)

G03124653

Courtesy of BMW OF NORTH AMERICA, INC.

Version with battery in luggage compartment:

Fit rubber mount (1) on tray (2) at top.

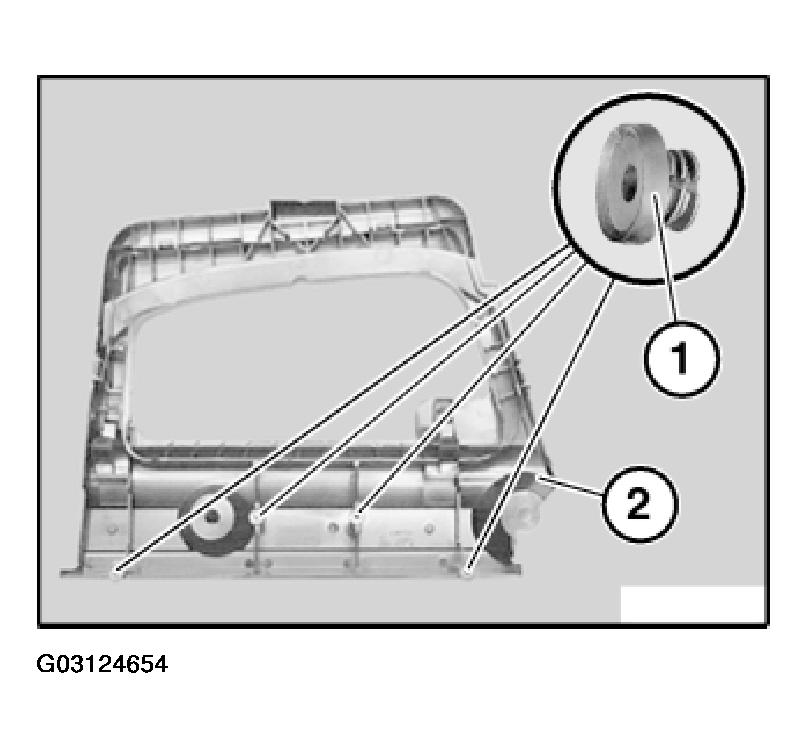

Fig 4: Fitting Rubber Mount On Tray At Top (Version With Battery In Luggage Compartment)

G03124654

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

Remove trim for spare wheel.

Release nut (1) and remove trim (2) towards top.

Fig 5: Removing Trim (Left Side)

G03124655

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit rubber mount (1) on trim (2) at top.

Fig 6: Fitting Rubber Mount On Trim

G03124656

Courtesy of BMW OF NORTH AMERICA, INC.
