Removing and installing/replacing oil temperature sensor (S55 engine)

Carry out this repair only when the engine has cooled down.

Recycling:

Catch and dispose of emerging engine oil.

Observe country-specific waste disposal regulations.

Attention!

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

• Remove THROTTLE VALVE ASSEMBLY .

Removal:

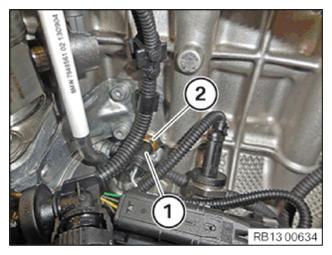

Unlock connector (1) and pull off.

Courtesy of BMW OF NORTH AMERICA, INC.

Release and remove oil temperature sensor (2).

Preparation for installation:

Check sealing ring of oil temperature sensor, replace if necessary.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Install and tighten oil temperature sensor (2).

Tightening torque 13 62 7AZ .

Attach and lock connector (1).

Connector (1) must engage audibly.

Required follow-up work:

• Install THROTTLE BODY .
• Check engine oil level; top up the engine oil if necessary.
