Replacing all valve stem seals (S55 engine)

Special tools required:

11 1 480
11 6 380

Necessary preliminary tasks:

Remove CYLINDER HEAD .
Remove INTERMEDIATE LEVER .
Remove ECCENTRIC SHAFT .
Remove INTAKE CAMSHAFT .
Remove EXHAUST CAMSHAFT .
Remove ROCKER ARMS .

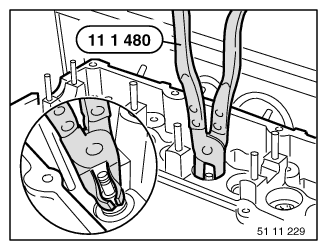

Firmly press special tool 11 1 480 onto old valve stem seals.

Detach valve stem seal from valve stem by turning and simultaneously pulling special tool 11 1 480.

Installation note:

Insert all VALVES .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For use on the N55 engine, special tool 11 6 380 must be re-machined according to the illustration with a 10 mm dia. drill bit to a depth of B = approx. 23 mm.
This modification has already been taken into account for reordering.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Different diameters at valve stem.
All valve stem seals are color-coded.

For 5 mm dia. valves, the valve stem seal is marked red or brown.

For 6 mm dia. valves, the valve stem seal is marked green.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit the mounting sleeves (plastic sleeves) contained in the delivery specification on the valve stem end.

Lubricate assembly sleeve.

Press on valve stem seal by hand with special tool 11 6 380 as far as it will go.

NOTE: Illustration shows N42.

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
