Removing and installing/replacing intake camshaft (S55 engine)

Special tools required:

Necessary preliminary tasks:

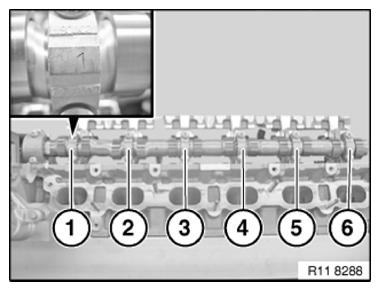

NOTE: All bearing caps are identified with numbers from 1 to 6.

The front bearing cap is a thrust bearing and does not have an identification.

Release screws on thrust bearing cover.

Release screws on all bearing caps 1 to 6.

Set all bearing caps down in special tool 11 4 481 in a neat and orderly fashion.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intake camshaft (2) towards top.

Installation note:

Clean all bearing positions and lubricate with oil.

Check plain rectangular compression rings (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Plastic plain rectangular compression ring:

Installation note:

The plastic plain rectangular compression rings are maintenance-free and do not have to be replaced.

Insert plastic plain rectangular compression ring (1) into groove of intake camshaft (2) (see arrow in illustration).

Courtesy of BMW OF NORTH AMERICA, INC.

Check the plastic plain rectangular compression rings (1 and 2) for freedom of movement.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

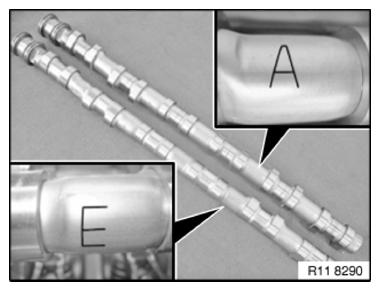

Marks of intake and exhaust camshafts are different.

Mixing up the intake and exhaust camshaft will result in engine damage .

A Exhaust camshaft.

E Intake camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

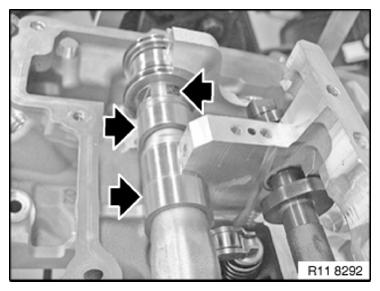

Insert intake camshaft so that data code (1) on mounting flats points upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Position intake camshaft so that the cams point diagonally upwards to the left.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: All bearing caps are identified with numbers from 1 to 6.

The front bearing cap is a thrust bearing and does not have an identification.

Insert screws on all bearing caps 1 to 6.

Insert screws on thrust bearing cover.

Tightening torque 11 31 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
