Replacing wiring loom section for ignition and injectors (S55 engine)

Necessary preliminary work:

• Read out the fault memory of the DME control unit.
• Switch off ignition.
• Remove CORROSION PROTECTION COVER .

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

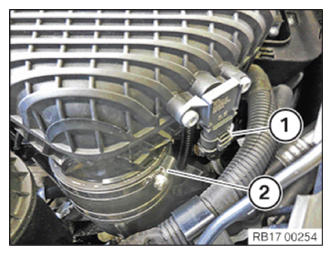

Unfasten hose clamp (2).

Unlock and disconnect the plug connection (1).

Do not  detach coolant hoses (2) from charge air cooler (1).

Detach the coolant hose from the clamp (3).

Do not  detach coolant hose (4) from charge air cooler (1).

Do not drain coolant!

Release charge air cooler (1) upwards from the rubber mounts and place to one side, do not  remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect all plug connections (1) on engine control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Release holder (2) and lay to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

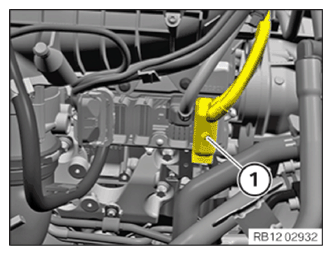

Remove connector (1) from DME control unit and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

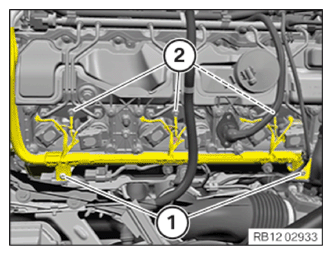

Release screws (1).

Release nuts (2) and remove the ground cable.

Courtesy of BMW OF NORTH AMERICA, INC.

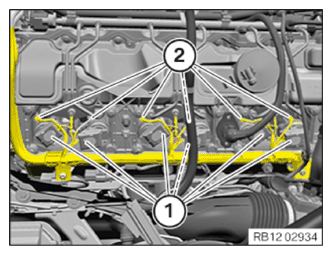

Unlock and pull off connectors (1) on ignition coils.

Unlock and disconnect connector (2) at injectors.

Undo, feed out and remove wiring harness section from clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Route the wiring harness section and fasten it with the clamps.

Connect the connector (1) to the ignition coils and lock audibly.

Connect connector (2) to the injectors and lock it audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1).

Tightening torque 12 90 2AZ .

Connect ground cable to the ground connections. Tighten down nuts (2).

Tightening torque 12 90 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Route the connector (1) to the DME control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

Mount holder (2).

Tighten screws (1).

Tightening torque 12 90 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach and audibly lock all plug connections (1) on the engine control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed the charge air cooler (1) into the rubber mounts and latch.

Check coolant hoses (2) for a correct fit on the charge air cooler.

Secure coolant hoses (3) with clamp (3).

Check coolant hose (4) for a correct fit on the charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten hose clamp (2).

Tightening torque 17 10 9AZ .

Connect and lock the connector (1).

Connector (1) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check wiring harness installation arrangement.

Check plug connections for correct fit.

Check stored fault messages.

Delete the fault memory.

Required follow-up work:

• Install the CORROSION PROTECTION COVER .
