Removing and installing or replacing alternator (S55 engine)

Only perform this repair work on an engine that has cooled down.

Necessary preliminary work:

• Switch off ignition.
• Disconnect BATTERY EARTH LEAD .
• Remove UNDERBODY PROTECTION .
• Remove DRIVE BELT FOR ALTERNATOR .

In so doing:

• Do not  draw off air conditioning refrigerant.
• Do not  detach refrigerant lines from A/C compressor.
• Do not  remove A/C compressor; instead, remove from bracket only and place to one side.

REMOVE A/C COMPRESSOR FROM BRACKET .

Removal:

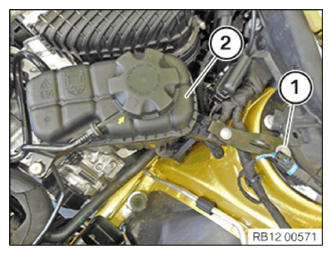

Release screw (1).

Release coolant expansion tank (2) and lay to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

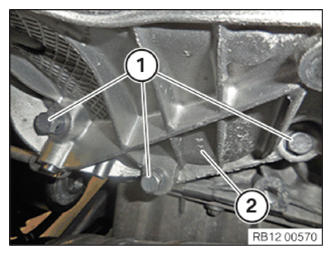

Loosen screws (1) by a few turns until holder of air conditioning compressor (2) is loose.

Do not remove holder of air conditioning compressor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

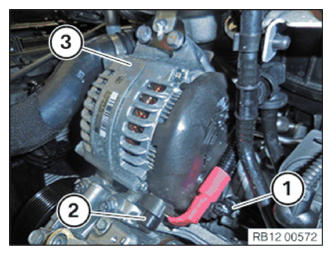

Unlock connector (1) and remove.

Remove protective cap and release nut (2) underneath.

Disconnect positive battery cable (2) from alternator (3).

Courtesy of BMW OF NORTH AMERICA, INC.

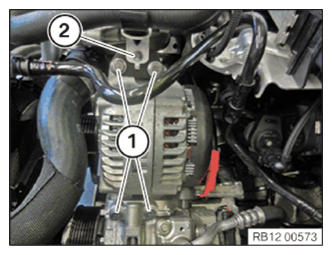

Release screws (1).

Release screw (2) and remove alternator.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install alternator and tighten screws (1).

Tighten screw (2).

Tightening torque 12 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1).

Connector (1) must snap audibly into place.

Install positive battery cable on alternator (3).

Tighten nut (2) and install protective cap.

Tightening torque 12 42 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) of air conditioning compressor holder (2).

Tightening torque 12 31 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Insert coolant expansion tank (2) into rubber mounts and tighten screw (1).

Tightening torque 17 10 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refit AIR-CONDITIONING COMPRESSOR .
• Install DRIVE BELT FOR ALTERNATOR .
• Connect BATTERY EARTH LEAD .
• Install UNDERBODY PROTECTION .
