Removing and installing the charge air cooler radiator (S55 engine)

Only perform this repair work after engine has cooled down.

Necessary preliminary tasks:

• Follow notes for CARRYING OUT REPAIR WORK ON THE COOLING SYSTEM .
• Remove FAN COWL .
• Remove front BUMPER TRIM .
• Remove FRONT PANEL , center

Removal:

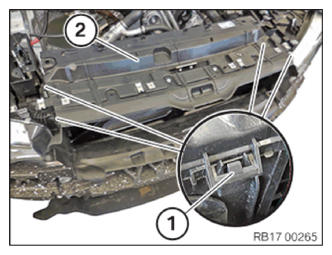

Unlock clamps (1) on air duct (2).

Remove air duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

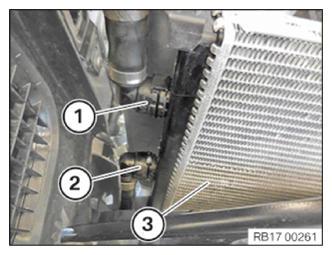

Unlock and detach coolant hose (1).

Lift charge air cooler (3).

Unlock and detach coolant hose (2).

Courtesy of BMW OF NORTH AMERICA, INC.

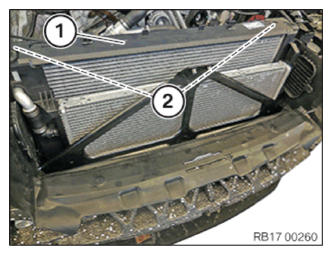

Release lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

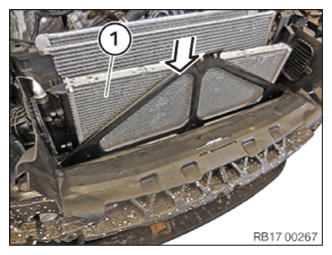

Carefully feed out charge air cooler (1) upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carefully feed in charge air cooler (1) downwards and install.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock coolant hose (2).

Feed in charge air cooler (3).

Connect and lock coolant hose (1).

Coolant hoses must audibly snap into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure charge air cooler (1) in lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

Tighten down screws (2).

Tightening torque 17 10 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

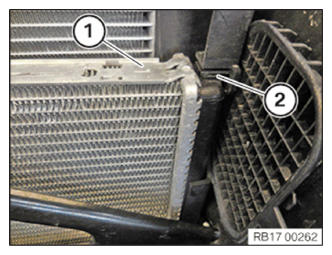

Install air duct (2).

Lock clamps (1) on air duct (2).

Clamps (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install FAN COWL .
• Install BUMPER PANEL , front
• Install FRONT PANEL , center
