Installing the seal for the panoramic glass sunroof
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
- Clean the bonding surface completely.

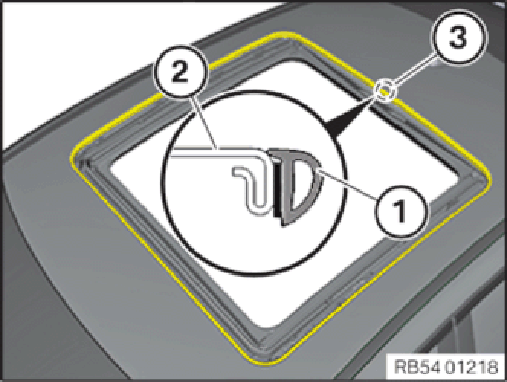

- Begin bonding the seal (1) at the mark for the sealing joint (3).
- Bond the gasket (1) in sections and flush with the roof outer skin (2).
Bond the seal (1) without expansion (slightly compressed).
Only lightly press on the seal (1) to correct the position if required.
Make the sealing joint without a gap.
- Check that the seal (1) is positioned correctly and if applicable, correct the position.

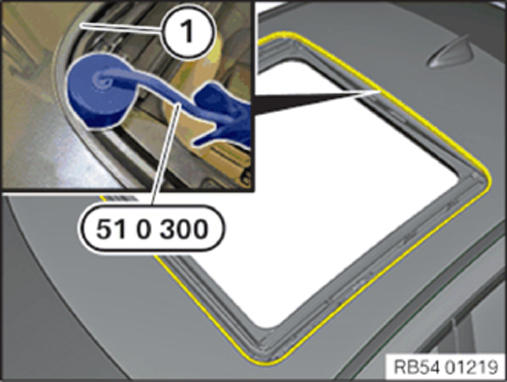

- Press the seal (1) onto the roof outer skin using the special tool 0 495 505 (51 0 300) .
- Apply additional pressure to the corners of the gasket (1).
Follow-up work
- Refer to INSTALLING THE REAR PANORAMA GLASS ROOF LID .
- Refer to INSTALLING THE FRONT PANORAMA GLASS ROOF PANEL .
- Refer to CHECKING THE ADJUSTMENT OF THE PANORAMA GLASS ROOF .
- Refer to ADJUSTING THE PANORAMA ROOF LID AT FRONT .
- Refer to ADJUSTING REAR PANORAMA ROOF COVER .
- Refer to INITIALIZING PANORAMA GLASS ROOF .
