Install coolant feed line
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Replace the sealing rings (1) with the special tool 0 496 714 (00 9 030)
.
Parts: Sealing ring

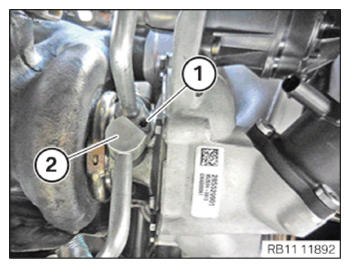

- Insert the coolant feed line (2) and install.
- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATIONS
Coolant line to exhaust turbocharger M6 tightening torque 8 Nm - Insert the coolant feed line (2) and install.
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Coolant feed line to crankcase | ||
| M6 | tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING CATALYTIC CONVERTER .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE CROSS-MEMBER WITH TORSION STRUTS .
- Refer to INSTALLING THE CONNECTING SUPPORT ON THE TUNNEL AT FRONT AND REAR .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
- Refer to INSTALLING THE OXYGEN SENSOR MONITOR .
- Refer to INSTALLING LAMBDA OXYGEN SENSOR .
- Refer to PREPARING FOR THE INSTALLATION OF THE CLEAN AIR PIPE .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to CONNECTING COOLANT LINE .
- Refer to INSTALLING FAN COWL WITH ELECTRIC FAN .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to INSTALLING THE REAR BULKHEAD .
- Refer to INSTALLING THE UPPER FIREWALL COVER PANEL .
- Refer to INSTALLING FRONT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to FILLING THE COOLANT CIRCUIT WITH THE VACUUM FILLING EQUIPMENT .
- Refer to AIR BLEEDING THE COOLANT CIRCUIT .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
