Installing acoustic cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to the acoustic cover/design cover .
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover .
Damage to the acoustic cover/design cover .
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover .
- Disassemble or mount the acoustic cover/design cover carefully.
- Disassemble or mount snap-lock couplings of the ball pivots one after the other.
- Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
- Use only distilled water as an auxiliary material during installation, no lubricants.
Check

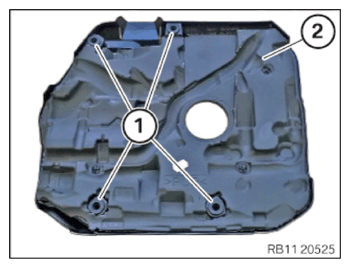

- Check correct fit of the rubber mounts (1) in the acoustic cover (2).
Result
» Rubber mounts (1) are not seated correctly in the stands.
Measure
- Insert the rubber mounts (1) correctly.

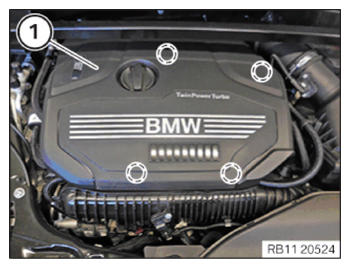

- Set and engage the acoustic cover (1) on the locating pin in the marked areas.
» The acoustic cover (1) must engage noticeably and audibly.
