Installing the coolant radiator
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.
- Feed in coolant radiator (1) in the arrow direction and install.
- Tighten screws (1) on the charge air cooler.
TIGHTENING TORQUE SPECIFICATIONS
| Charge air cooler on coolant radiator | ||
|---|---|---|
| M6x12 | tightening torque | 6 Nm |

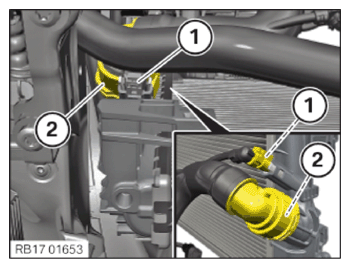

- Connect and lock connectors (1) and (2) from the coolant line.
- Make sure that you can hear the connections.

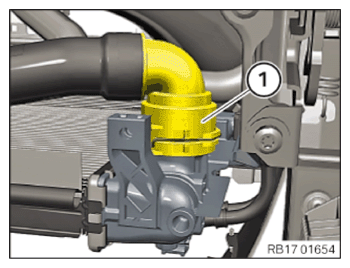

- Connect and lock coolant line (1).
- Make sure that the coolant line (1) engages audibly.

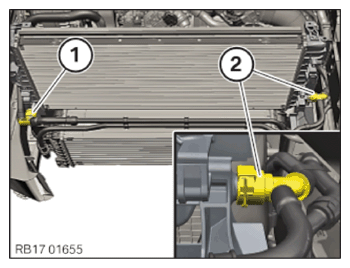

- Connect and lock coolant line (2).
- Make sure that the coolant line (2) engages audibly.
- Connect and lock the connector (1).
- Make sure the connector (1) engages audibly.
Follow-up work
- Refer to CONNECTING THE COOLANT LINE .
- Refer to PARTIALLY INSTALLING THE TRANSMISSION OIL COOLER .
- Refer to CHECKING/TOPPING UP OIL LEVEL IN AUTOMATIC TRANSMISSION (AISIN GA8G45) .
- Refer to INSTALLING FAN COWL WITH ELECTRIC FAN .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING AIR CONDITIONING CONDENSER .
- Refer to INSTALLING AIR DUCT TO RADIATOR .
- Refer to INSTALLING THE BUMPER CARRIER IN THE FRONT TOP .
- Refer to INSTALLING BUMPER COVER, FRONT .
- Refer to INSTALLING TEMPERATURE SENSOR .
- Refer to PARTIALLY INSTALLING FRONT LEFT AND RIGHT WHEEL ARCH COVER .
- Refer to PARTIALLY INSTALLING THE WHEEL ARCH TRIM ON THE FRONT LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT CENTER HOOD SEAL .
- Refer to INSTALLING HOOD SEAL ON LEFT AND RIGHT SIDES .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
- Refer to EVACUATE AND CHARGE CONDITIONING .
- Refer to FILLING AND VENTING THE COOLANT CIRCUIT .
