Connect the coolant line
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

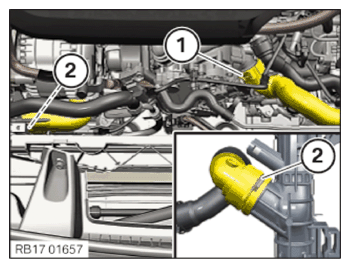

- Connect and lock coolant line (1).
- Make sure the coolant line (1) engages audibly.
- Connect and lock coolant line (2).
- Make sure that the cooling line (2) engages audibly.
Follow-up work
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING FAN COWL WITH ELECTRIC FAN .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to FILLING THE COOLANT CIRCUIT WITH THE VACUUM FILLING EQUIPMENT .
- Refer to AIR BLEEDING THE COOLANT CIRCUIT .
