Lower roofliner
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Refer to REMOVING THE DOOR SILL COVER STRIP ON THE REAR LEFT AND RIGHT .
- Refer to REMOVING THE BOTTOM LEFT AND RIGHT C-PILLAR TRIM PANELS .
- Refer to REMOVING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
- Refer to REMOVING THE COMPACT SPARE WHEEL .
- Refer to REMOVING THE VEHICLE TOOL KIT .
- Refer to REMOVING THE HOOK AND LOOP TAPE FOR THE VEHICLE TOOL KIT .
- Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to REMOVING THE TRIM PANEL OF THE LUGGAGE COMPARTMENT CAPPING ON THE LEFT AND RIGHT .
- Refer to REMOVING ALL GRAB HANDLES .
- Refer to REMOVING THE COVER ON THE INSIDE MIRROR .
- Refer to REMOVING THE LEFT AND RIGHT SUN VISOR .
- Refer to REMOVING COUNTER SUPPORTS FOR SUN VISOR ON LEFT AND RIGHT .
- Refer to REMOVING THE ROOF FUNCTION CENTER .
- Refer to REMOVING THE LEFT AND RIGHT A-PILLAR TRIM PANELS .
- Refer to REMOVING THE B-PILLAR TRIM PANELS AT TOP LEFT AND RIGHT .
- Refer to REMOVING THE BELT FEED TRIM .
Precondition
The front seats have been fully adjusted towards the bottom.
The front seat backrests have been fully adjusted towards the rear.
NOTE:
RISK OF DAMAGE

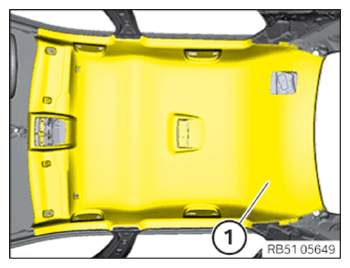

Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
- Carry out tasks with a second person to assist.
- Support the headlining at the front and back.
