Removing right luggage compartment wheel arch trim panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING TRIM PANEL FOR STORAGE SHELF (PARCEL SHELF) .
- Refer to REMOVING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING THE COMPACT SPARE WHEEL .
- Refer to REMOVING THE VEHICLE TOOL KIT .
- Refer to REMOVING THE HOOK AND LOOP TAPE FOR THE VEHICLE TOOL KIT .
- Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE 12 V POWER SOCKET MOUNT .
- Refer to REMOVING THE TRUNK COMPARTMENT LIGHT .

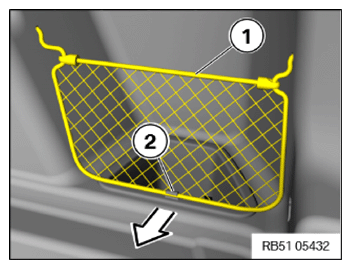

- Release the storage net (1) from the latch mechanism (2) in the direction of arrow and fold up.

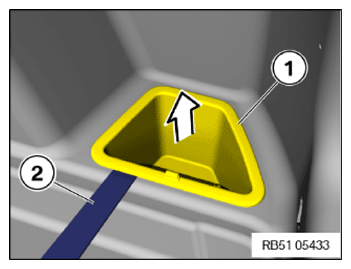

- Remove storage compartment (1) out of the luggage compartment wheel arch trim panel in the direction of arrow using a suitable tool (2).

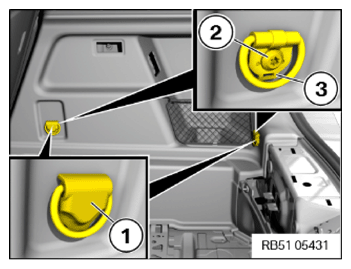

- Unclip covers (1).
- Unscrew the bolts (2) and remove the lashing points (3).NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

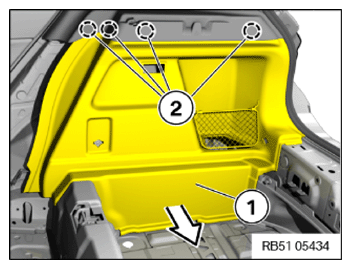

- Pull the luggage compartment wheel arch trim panel (1) on the bottom in the direction of the arrow and guide it out of the guides (2) and the C-pillar trim panel and remove.
