Removing all grab handles
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
» Removing the grab handle

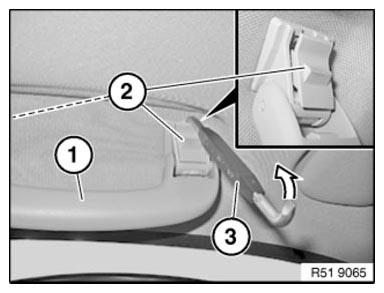

- Expand the grab handle (1) towards the bottom.
- Disengage and remove the locking insert (2) with an angle screwdriver (3) as shown.
- Pull the grab handle (2) slightly to the inside and hold it.

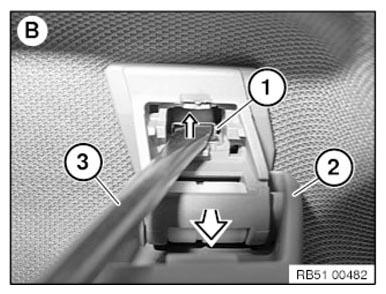

- Release the top and bottom release tab (1) with a suitable screwdriver (3) in the arrow direction respectively
- Guide the grab handle (2) out.
- Repeat the operation on the other side of the grab handle (2).
