Removing and installing/replacing complete rear left or right power window regulator (4' Series Gran Coupe Sedan)

Special tools required:

WARNING: Danger of injury!

Carry out work on the power window regulator only when the power window motor is de-energized.

Necessary preliminary work:

Close the door and remove the sealing cap from the front door window frame.

Loosen nut (1).

Installation note:

Nut (1) is tightened during adjustment of door window glass setting.

Courtesy of BMW OF NORTH AMERICA, INC.

Open door and remove sealing cap (1) on rear door window frame.

Loosen nut (2).

Installation note:

Nut (2) is tightened during adjustment of door window glass setting.

Courtesy of BMW OF NORTH AMERICA, INC.

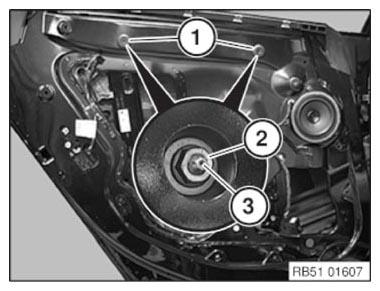

Remove the sealing caps (1).

Release the nut (2) using special tool 51 0 400 and counter support the adjustment pin (3) when doing this.

Tightening torque 51 35 2AZ .

NOTE: If adjustment pin (3) is not counter supported, shaft dimension of door window glass can change.

Courtesy of BMW OF NORTH AMERICA, INC.

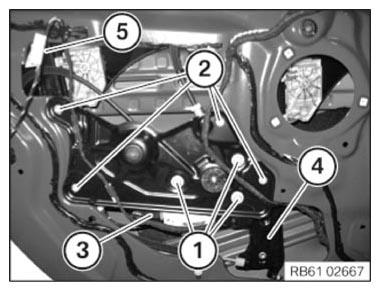

Unscrew nuts (1).

Tightening torque 51 35 2AZ .

Release screws (2) and remove the mounting plate.

Tightening torque 51 35 4AZ .

Unfasten plug connection (3) and disconnect.

Feed out the window lift rails (4 and 5).

IMPORTANT: Risk of paint damage!

Courtesy of BMW OF NORTH AMERICA, INC.

Concluding tasks:

Replacement:
