Removing and installing/replacing flat motor for rear left or right power window regulator (4' Series Gran Coupe Sedan)

Necessary preliminary work:

• Remove SOUND INSULATION IN REAR DOOR .

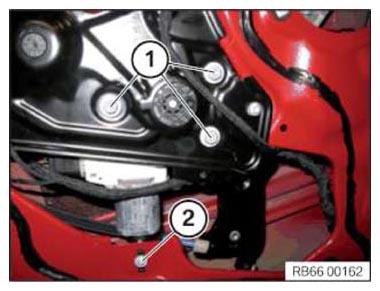

Release nuts (1) and screw (2).

Tightening torque 51 35 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

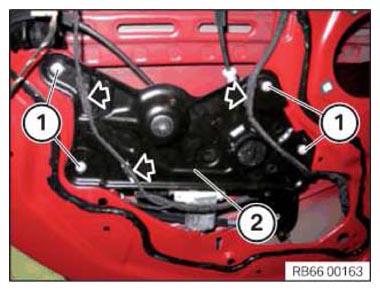

Release cable clips at marked positions.

Release screws (1).

Tightening torque 51 35 4AZ .

Remove the mounting plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.

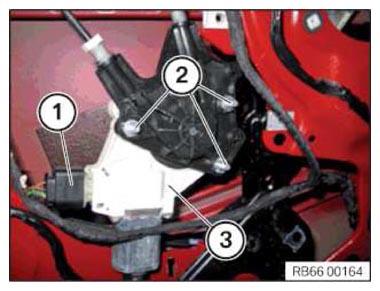

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Tightening torque 51 35 1AZ .

Remove flat motor (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

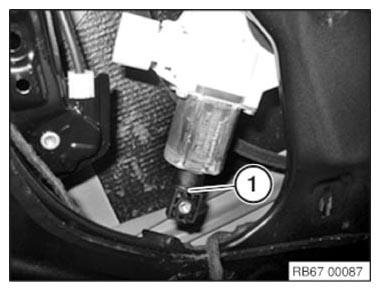

Remount the support (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure drive shaft (2) is correctly seated in mounting (1) at power window regulator (3)!

Ensure that the flat motor (2) is assembled without tension.

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

An initialization must be carried out in order to activate anti-trap mechanism.

Read and comply with NOTES  on initialization of power window regulator.
