Installing exchange transmission (GA8HP75Z) (X6 M)
IMPORTANT:
- Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
- Wear protective gloves.
- Ensure adequate ventilation
Drain automatic transmission fluid at oil drain plug.
Tightening torque 24 11 2AZ .
IMPORTANT:
After completion of repair work, program control transmission control unit.
Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations.
IMPORTANT:
- Before installing replacement transmission, always flush TRANSMISSION FLUID COOLER TOGETHER WITH LINES .
- After completion of repair work, check TRANSMISSION OIL LEVEL .
- Use only approved TRANSMISSION OIL .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

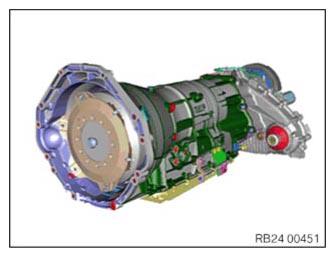

Exchange transmissions come with electrical machine and filled with oil.
Necessary preliminary tasks:
- Remove AUTOMATIC TRANSMISSION .
Remount the TRANSFER BOX .
Remount transportation retainer.
Remount all cable clips.
Remount all seal plugs.
Remount protective cap on output shaft.
Transmission identification:
- refer to the applicable BMW Parts catalogue.
- On type plate
Required reworking:
- Install AUTOMATIC TRANSMISSION .
Carry out VEHICLE PROGRAMMING/ENCODING .
Connect BMW diagnosis system:
- Service functions
- Power train
- Hybrid car
- Electrical machine electronics
- Motor position sensor adjustment
