Flushing transmission oil cooler with lines (automatic transmission) (GA8HP45Z, GA8HP50Z, GA8HP51Z, GA8HP70Z, GA8HP75Z, GA8HP76Z, GA8HP90Z, GA8HP95Z) (X6 M)
Special tools required:
- 17 2 018
- 17 2 019
Installing a new or replacement transmission.
Course of action:
Automatic transmission removed.
Connect the corresponding adapters to the oil lines from the automatic transmission (see description below).
Connect access line 17 2 019 from the oil dispenser unit by means of the quick-release coupling.
Connect drain line 17 2 018 by means of the quick-release coupling.
Hold the open end of the drain line in a suitable collecting vessel.
Using the oil dispenser unit, flush approx. 1 liter of transmission oil (see BMW Service OPERATING FLUIDS ) through the oil lines and the transmission oil cooler.
Reconnect quick-release couplings.
Flush oil lines/transmission oil cooler in the opposite direction with approx. 1 liter transmission oil (see BMW Service OPERATING FLUIDS ).
Disconnect quick-release couplings.
Remove adapter.
Recycling:
Do not reuse flushing oil under any circumstances.
Dispose of flushing oil in accordance with country-specific waste disposal regulations.
Press hydraulic lines (1) into adapter (2).
Insert clamping bracket (3) in guides and secure with screw (4).

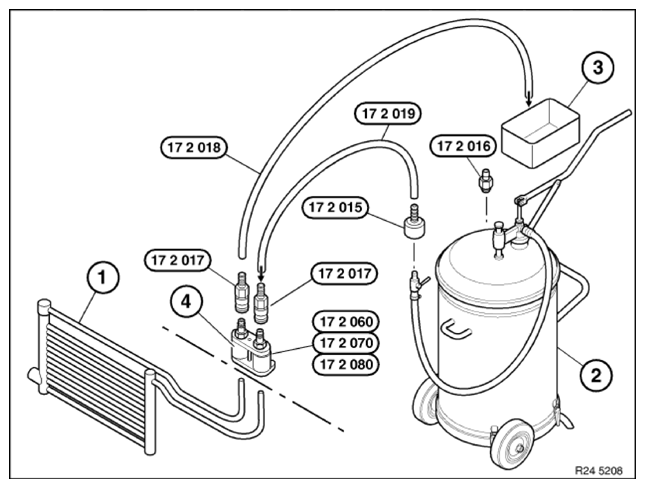

Arrangement of flushing device for GA8HP45Z, GA8HP50, GA8HP70Z, GA8HP75Z, GA8HP90Z transmissions
- Transmission oil cooler with lines
- Oil dispenser unit
17 2 015 Connection for oil dispenser unit (2), manufacturer Deutsche Tecalemit or
17 2 016 Connection for oil dispenser unit (2), manufacturer Horn
17 2 017 Quick-release coupling (2 pcs.)
17 2 019 Hose to oil dispenser unit (2)
- Oil drip tray
17 2 018 Hose to oil drip tray (3)
- Adapter with clamping bracket
17 2 080 Adapter with clamping bracket GA8HP45Z/GA8HP70Z/GA8HP90Z
