Removing and installing/replacing pressure sensor on right charge-air cooler (S63B44 T 2) (X6 M)

Necessary preliminary tasks:

• Read out the fault memory of the DME control unit.
• Switch off ignition.
• Remove INTAKE SILENCER HOUSING .

Unclip Bowden cable for bonnet release from transverse reinforcement and cable.

Loosen screws (1).

Remove transverse reinforcement (2).

Courtesy of BMW OF NORTH AMERICA, INC.

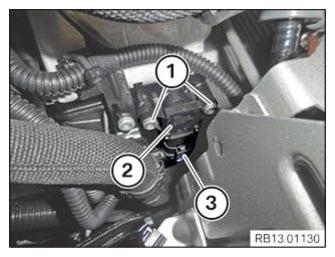

Release screws (1).

Pull pressure sensor (2) out of right intercooler.

Pull pressure sensor (2) upward, till the connector (3) becomes accessible.

Unlock connector (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Replace sealing ring (1) on pressure sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect and lock connector (3) to pressure sensor.

Connector (3) must engage audibly.

Install pressure sensor (2) in charge air cooler to the right.

Tighten down screws (1).

Tightening torque 13 62 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install transverse reinforcement (2).

Parts:  Replace screws.

Tighten down screws (1).

Tightening torque 17 10 4AZ .

Connect Bowden cable for bonnet release and cable to transverse reinforcement.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install INTAKE SILENCER HOUSING .
