Removing and installing/sealing right throttle body (S63 B44 T 2) (X6 M)

Necessary preliminary tasks:

• Switch off ignition.
• Remove right INTERCOOLER .

Removal:

Release clamp (1).

Remove charge air hose (2).

Courtesy of BMW OF NORTH AMERICA, INC.

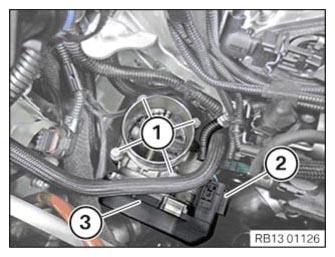

Release screws (1).

Unlock connector (2) and remove.

Remove throttle body (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

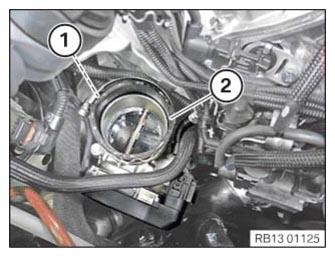

Replace sealing ring (1) of throttle body (2).

Check plug connections for coolant residue. If necessary, blow clean plug connection with compressed air.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install throttle body (3) and fix in place using bolts (1).

Tighten down screws (1).

Tightening torque 13 54 1AZ .

Attach connector (2). Connector (2) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Mount charge air hose (2).

Tighten clamp (1).

Tightening torque 13 71 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install right CHARGE AIR COOLER .
