13 51 070 Removing and installing/replacing right high pressure pump (N63 B40/B44 O 1, S63 B44 T 2)
Special tools required:
Disconnect NEGATIVE BATTERY TERMINAL (risk of fire due to short circuit on removal).
Electric fuel pump starts up automatically when door is opened!
Carry out installation work on fuel system only with coolant temperature below 40°C!
Fuel can emerge spontaneously at high speed when the high pressure line is released!
Introduced contaminants can cause malfunctions in the system!
- Do not allow any dirt particles or foreign bodies to get into the system.
- Remove all traces of contamination before removing lines or separate components.
- Use only lint-free cloths.
- Seal all fuel system openings with protective caps or plugs.
The resistance of the silicone material is reduced significantly by contact with fuel, which may cause the ignition coil to fail!
Cover ignition coil with suitable means.
Necessary preliminary tasks:
- Remove INTAKE SILENCER HOUSING .
- Remove ACOUSTIC COVER .
- Remove right CHARGE AIR HOSE (only N63 B40/B44 O1).
- Remove CLEAN AIR PIPE on right.
- Remove IGNITION COILS , cylinders 1-4.
- Remove FAN COWL .
Recycling:
Fuel escapes when fuel lines are detached.
Catch and dispose of escaping fuel.
Observe country-specific waste disposal regulations.
Release screw (1).
Release pressure line at the injectors (1).
Tighten pressure line on injector with torque wrench (2) and special tool (1) 13 0 161 .
Tightening torque: 13 53 3AZ
Release the union nuts of the fuel delivery line (1) and pressure line (2) at the high pressure pump (3).
Installation note:
Tighten fuel delivery line (1) and pressure line (2) hand-tight at high pressure pump.
Next, tighten the pressure line on the high pressure pump with the torque wrench (2) and the special tool (3) 00 1 440 .
Tightening torque: 13 53 3AZ
Unlock and pull off connector from high-pressure sensor on rail.
Unlock and pull off connector from injectors.
Release screws (1).
Tightening torque 12 51 1AZ .
Loosen wiring harnesses (2) from cylinder head cover and place to one side.

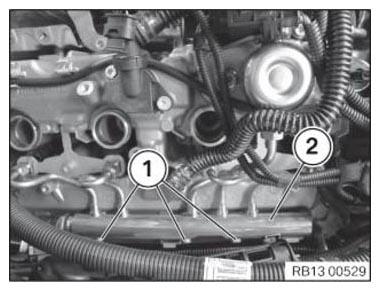

Release screws (1) a few rotations and slacken rail (2).
Tightening torque: 13 53 1AZ
Disconnect fuel delivery line. Seal fuel lines with special tool (1) 13 5 160 and special tool (2) 13 5 162 .
Catch and dispose of escaping fuel.
Pull off connector (2) with holder (1) in an upwards direction.
Pull off connector (1) from high pressure pump (2).
Slightly slacken screws (1) of high pressure pump (2). If the high pressure pump is forced out, the engine will have to be turned to bring the camshafts to a different position.
Otherwise it will not be possible to install the high-pressure pump! Release screws (1).
Replace screws. Screws are coated with a screw locking agent.
The pump plunger can fall out when the high-pressure pump (2) is pulled
out! Detach high-pressure pump (2) and remove.
Engine oil can emerge when pulling off the pump; have cloths ready.
Installation note:
Before installing the high pressure pump, the cam of the high pressure pump drive must be turned to bottom dead center. To do this, twist the engine if necessary in the direction of engine rotation to the central bolt of the crankshaft.
Adhere to tightening/torque sequence.
Lay depth gauge (1) flat on high pressure pump flange.
Turn engine at central bolt in direction of engine rotation until the depth gauge shows that the camshaft has reached the BDC position .
Installation note:
Replace gasket (1).
Clean contact surfaces.
Install high pressure pump (2).
Replace screws (1). Screws (1) are coated with sealing compound.
Installation note:
Provisionally fasten screws (1) on high pressure pump (2) and tighten alternately in 90° increments until final tightening, otherwise the piston may break as a result of tilting!
Tightening torque: 13 51 1AZ
Assemble engine.
Check fuel system for tightness.
Check function of DME.
