13 71 000 Removing and installing/replacing intake silencer housing (N63 B40/B44 O 1)

Necessary preliminary tasks:

• Switch off ignition.
• Remove ACOUSTIC COVER
• Remove INTAKE PORT .

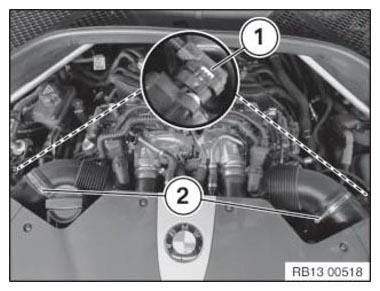

Unlock and pull off connector (1) from hot film air mass meter on left and right.

Release clamps (2).

Tightening torque 13 71 2AZ .

Fig 1: Identifying Hot Film Air Mass Meter Connector And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

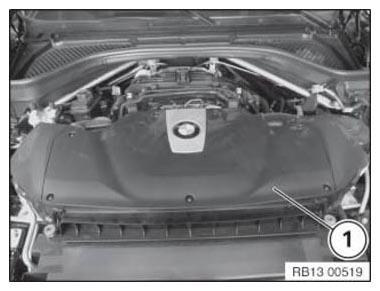

Pull off intake silencer housing (1) upwards from rubber mounts.

Fig 2: Identifying Intake Silencer Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
