11 12 006 Removing and installing/sealing right cylinder head cover (N63)

Special tools required:

Necessary preliminary tasks:

Remove retaining clips (1).

Partially release the filling channel for the washer system.

Fig 1: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

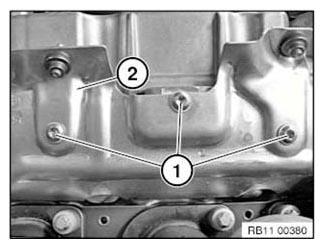

Release screws (1).

Remove heat shield (2).

Fig 2: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw connections in the sequence (16 to 1).

Remove cylinder head cover.

Fig 3: Right Cylinder Head Cover Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surface (1 and 2) with special tool 11 4 470 .

Fig 4: Identifying Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace profile seals (1 and 2).

Fig 5: Identifying Profile Seals Of Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring (1) for lubrication of vacuum pump.

Fig 6: Identifying Vacuum Pump Lubrication Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

It is important to insert screws (15 and 16) for exact positioning of the camshaft sensors.

Fit cylinder head cover.

Position screws (15 and 16).

Release screws again by a 90° turn.

Secure cylinder head cover in sequence (1 to 16) in two work steps.

Tightening torque 11 12 3AZ .

Fig 7: Right Cylinder Head Cover Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
