51 16 160 Removing and refitting (replacing) center console (middle) trim panel

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Tape over trim panel (1) and center console in working area.

Reach under trim panel (1) from front. Pull trim panel (1) upwards and in so doing detach from front clips (2).

Release trim panel (1) from remaining clips (2) using special tool 00 9 325 .

Unlock associated plug connections and disconnect.

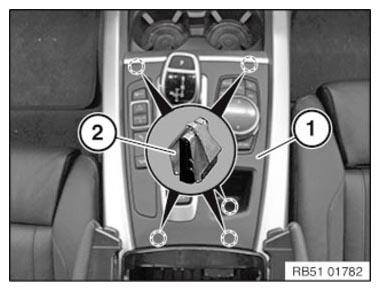

Fig 1: Identifying Trim Panel And Remaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clamps (1) must not be damaged or missing.

Replacement:

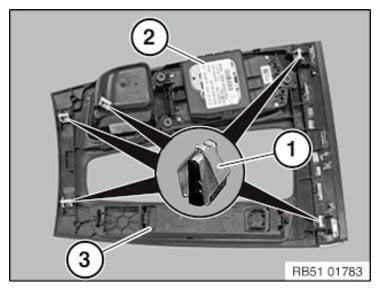

Fig 2: Identifying Controller, Center Console Control Panel, And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
