61 31 195 Removing and installing (replacing) front controller

Necessary preliminary tasks:

• Remove CENTER CONSOLE COVER

Release screws (1).

Tightening torque 61 31 2AZ .

Remove controller (2) from the center console trim (3).

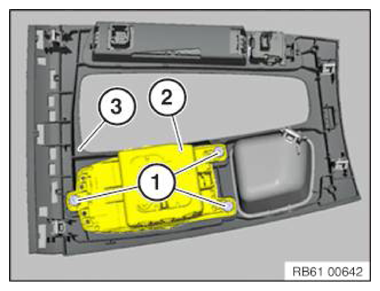

Fig 1: Identifying Center Console Trim, Controller And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
