Lowering/raising front axle support (universal lifter) (X5 M)
Special tools required:
- 00 2 030
- 31 4 170
- 31 5 250
- 31 5 255
- 31 5 256
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
When supporting components, make sure that:
- the vehicle can no longer be raised or lowered
- the vehicle does not lift off the locating plates on the vehicle hoist.
Observe SAFETY INFORMATION for raising the vehicle
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.
SECURE ENGINE IN INSTALLATION POSITION with special tool to prevent it from falling down.
Before lowering the front axle support, it is essential that the STEERING SHAFT on the steering box is unfastened!
If this is not carried out, the bulkhead steering shaft bearing will be damaged!
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE LEAD .
- Remove RIGHT MICROFILTER HOUSING COVER and LEFT MICROFILTER HOUSING COVER .
- Remove FAN COWL .
- Release STEERING SHAFT ON STEERING GEAR .
- SECURE ENGINE IN INSTALLATION POSITION .
- Remove FRONT WHEELS .
- Remove REAR ENGINE UNDERCOVER and UNDER/BODY PROTECTION (FRONT) .
- Remove TOP RIGHT STEERING BOX COVER and TOP LEFT STEERING BOX COVER .
- Remove REINFORCEMENT PLATE .

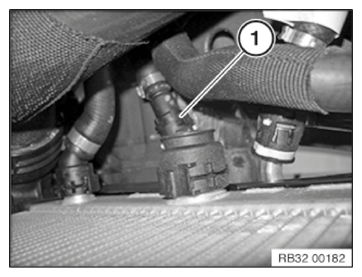

Release QUICK-RELEASE COUPLING of the return line on the transmission oil cooler.
Close radiator connection with suitable seal plug.
Release screws (1) from transmission oil cooler (2).
Tightening torque 17 22 10AZ .

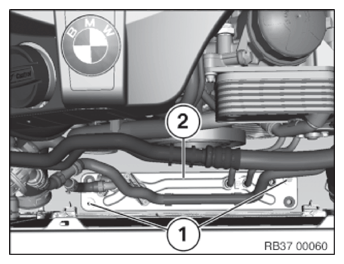

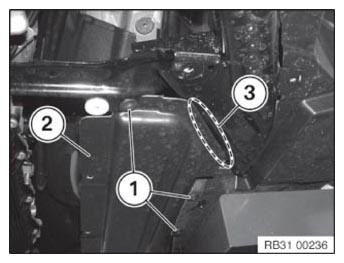

Release 3 screws (1) on left underbody panelling (2).
Installation note:
Risk of damage!
Risk of trapping and damage to underbody panelling (3).
Press plug on left and right out of spring strut dome.
Secure swivel bearing (1) on left and right with special tool 31 4 170 in installation position.
Slacken nut (1).
Tightening torque 31 35 2AZ .
Release anti-roll bar link (2) from anti-roll bar.
Installation note:
Replace nut (1).

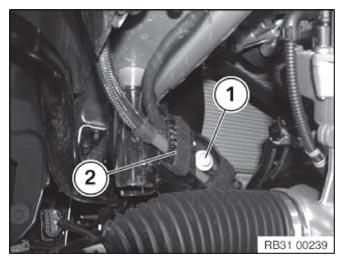

Disconnect connector (1).
Release connector from holder for front bottom left wheel arch cover (2).
Release cable from front axle support.

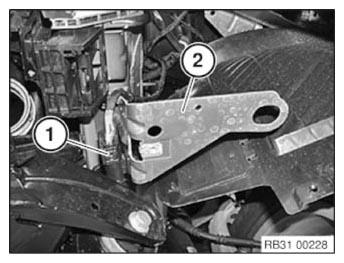

Release screw (1).
Release cable channel (2) from front axle support.

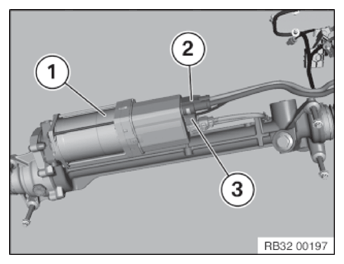

Release connectors (2 and 3) from EPS steering gear.
Engage special tool 31 5 250 with a 2nd person helping completely on workshop jack 00 2 030.

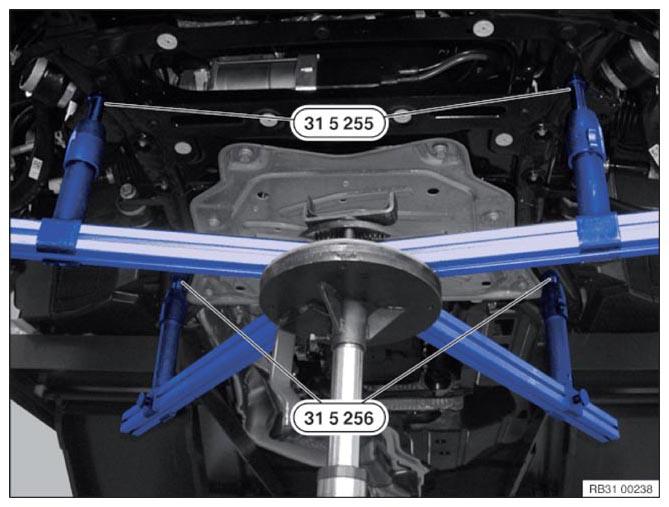

Insert special tools 31 5 255 in telescopic supports of a profile rail pair.
Insert special tools 31 5 256 in telescopic supports of other profile rail pair.
Mounting point (1) for special tool 31 5 250 on right hand side.
Align special tools 31 5 255 and 31 5 256 to front axle support.
Support front axle support by operating workshop jack 00 2 030.

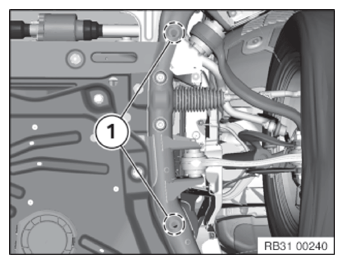

Release screws (1, 2).
Tightening torque 31 10 1AZ .
Lower front axle support by no more than 10 cm.
Installation note:
Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS .
Tighten down first screws (1) and then screws (2).

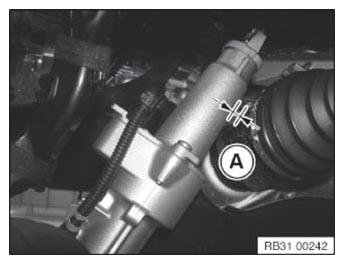

When lowering, make sure there is enough distance (A) between steering gear and output shaft.
Move front axle towards front of vehicle with special tool 00 2 030 when lowering.
Follow operations must be carried out during lowering:
- Remove all hydraulic lines on front axle support or anti-roll bar retaining bracket and tie up.
