Removing and installing/replacing reinforcement plate (X5 M)
Attention!
Driving without reinforcement plate is not permitted!
Necessary preliminary tasks:
- Remove FRONT UNDERBODY PROTECTION .

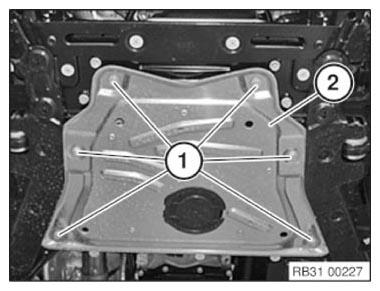

Release screws (1).
Tightening torque 31 10 2AZ .
Remove reinforcement plate (2).
Installation note:
Replace screws (1).
