Removing and installing front propeller shaft (X5 M)

IMPORTANT: Do not move vehicle under its own drive power once propeller shaft has been removed.

IMPORTANT: On four-wheel drive vehicles with defective, non-engaging drive, it is imperative that the following information is taken account of.

ADDITIONAL WORK when replacing propeller shaft.

Necessary preliminary work:

Remove REINFORCEMENT PLATE .
Remove LEFT UNDERBODY PANELLING .

Removal:

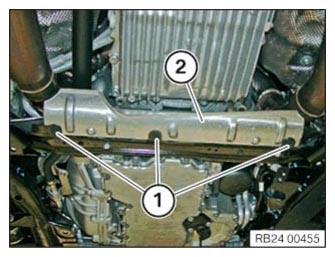

Release screws (1).

Remove panel (2).

G14933388

Courtesy of BMW OF NORTH AMERICA, INC.

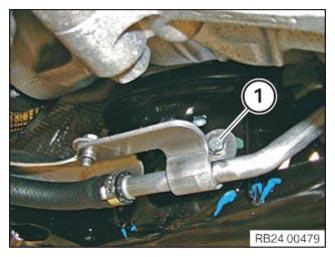

Release screw (1).

G14933538

Courtesy of BMW OF NORTH AMERICA, INC.

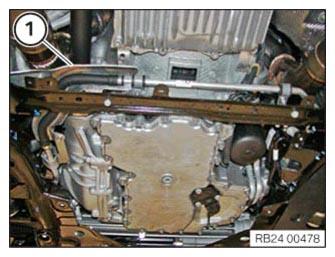

Remove cover plate (1).

G14933539

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws.

Slide propeller shaft towards rear and remove.

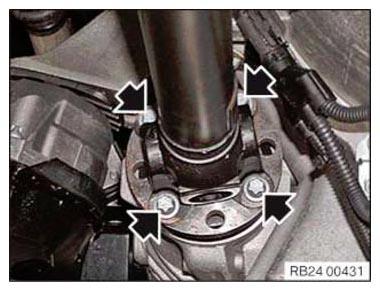

G11080775

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install propeller shaft and slide towards rear.

Sealing cup (1) must snap audibly into place and rest entirely on dust guard (2).

G06211233

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws and tighten.

Parts: Replace screws.

Tightening torque 26 11 7AZ .

G11080775

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover plate (1).

G14933539

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (1) and tighten.

G14933538

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install REINFORCEMENT PLATE .
Install left UNDERBODY PANELLING .
