51 43 259 Removing and installing/replacing trim panel for rear roof pillar (D-pillar), left or right

Necessary preliminary work:

Removal:

Release screws (1).

Carefully release trim panel (2) from clips (3) and remove.

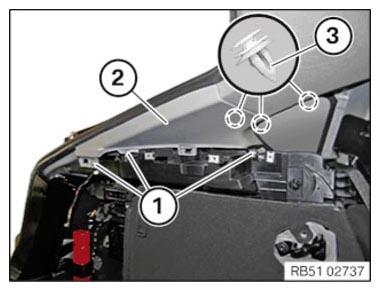

Fig 1: Releasing Trim Panel From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Replace faulty clips (3).
Make sure tailgate seal is fitted correctly on trim panel (2).

Attach trim panel (2) to clips (3).

Tighten down the screws (1).

Fig 2: Releasing Trim Panel From Clips

Courtesy of BMW OF NORTH AMERICA, INC.
