51 43 251 Removing and installing or replacing trim panel for left or right rear roof pillar (C-pillar)
WARNING:
Follow SAFETY INSTRUCTIONS
for working on vehicles with airbag systems.
IMPORTANT:
Do not use any sharp-edged removal tools for the trim panel (risk of damage).
Necessary preliminary work:
- Remove COVER FOR SHOULDER
Removal:

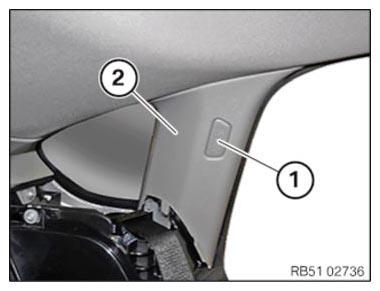

Remove cover (1).
Release screw underneath.
Remove cover (2).
Installation:
Install cover (2).
Tighten the screw.
Tightening torque 51 43 2AZ .
Install the cover (1).
NOTE:
Make sure trim panel (2) is fitted correctly on edge protection.
