51 44 013 Removing and installing/replacing headlining (with glass sunroof)

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Removal:

Remove edge protection (1) inwards.

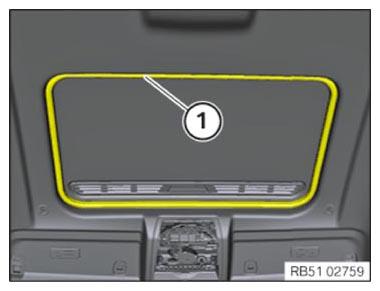

Fig 1: Identifying Edge Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Fold open hook (1).

Release the bolt (2) and remove the coat hook (3).

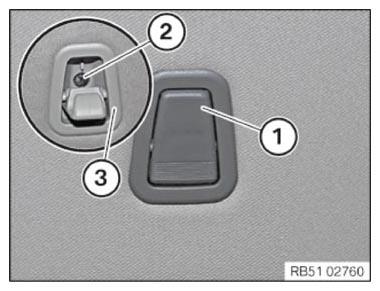

Fig 2: Identifying Coat Hook And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The following tasks must be carried out with a second person assisting:

Release the expanding rivet (1).

Release screws (2).

Unclip headlining (3) from rear clips.

Carefully place headlining down on instrument panel and front seats.

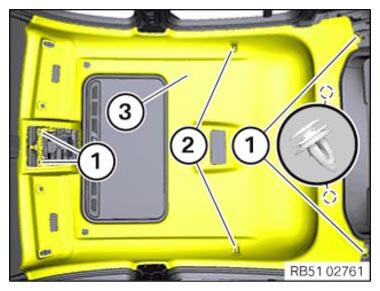

Fig 3: Identifying Expanding Rivet And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Complete removal only:

Carefully remove headlining through windscreen frame.

Replacement only:

Installation:

IMPORTANT: The following tasks must be carried out with a second person assisting:

Carefully thread headlining (3) into edge protection.

Clip headlining (3) into rear clips.

Mount expanding rivets (1).

Tighten screws (2).

Fig 4: Identifying Expanding Rivet And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Install the coat hook (3) and tighten the screw (2).

Fold hook (1) closed.

Fig 5: Identifying Coat Hook And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Mount the edge protection (1).

Fig 6: Identifying Edge Protection

Courtesy of BMW OF NORTH AMERICA, INC.
