51 31 000 Removing and installing/replacing windscreen

Special tools required:

Attention!

The following notes form the basis for these repair instructions and must be adhered to at all times:

Notes on window bonding
GENERAL PROCEDURE for dismantling/installation of affixed window glass

NOTE: Removal is performed with ROLL OUT 2000 or SPIDER .

The following new PARTS/CONSUMABLE are required (sourcing reference BMW Group Parts).

Material	Quantity
Windscreen	1
Windscreen cover (for replacement of windscreen)	1
Spacer 3.8x4x12.7 mm	4
Stop pad, half-round (h = 5 mm), from repair kit	5
Small repair kit	1
Sika Activator 205 (for windscreen cover)	1
In the case of replacement up to version (build date) 04/2012 with appropriate version: Rain/light/solar sensor or Rain/light/solar and condensation sensor	1

Necessary preliminary tasks:

Remove GUTTER STRIP on left and right
Remove COWL PANEL COVER
Remove INSIDE MIRROR
Remove TRIM PANEL FOR ROOF PILLAR (A-PILLAR) on left and right
Unlock and disconnect all plug connections on windscreen.
Cover front side panels with protective covers.

Attention!

Tape off body in area of piercing point with fabric adhesive tape.

Push wire from ROLL OUT 2000 along line (1) through adhesive bead (2).

For details on how to proceed, refer to: WINDOW REMOVAL WITH "ROLL OUT 2000" .

Lift out windscreen with suction cup.

Fig 1: Identifying Windscreen Adhesive Bead And Spider Along Line

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When cutting is carried out at the bottom, the engine compartment lid must be in the service position.

Wires and hoses remain connected.

Move ENGINE COMPARTMENT LID INTO SERVICE POSITION .

Fig 2: Moving Engine Compartment Lid Into Service Position

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through windscreen adhesive bead at bottom.

Lift out windscreen with suction cup.

Pull off adhesive tapes all round.

Fitting spacer buffers (spacers):

Attention!

To avoid windscreen breakage and wind noises:

Completely remove remnants of removed spacer buffers (1) and (2) and maintain installation location exactly.

Spacer (1) and semicircular spacer buffer (2) must be mounted centrally so that they cover the embossed marks on sheet metal flange.

Spacer 3.8x4x12.7 mm

Semicircular spacer buffer from repair kit

Fig 3: Identifying Spacer Buffers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace defective EXPANDING FOAM TAPE (1).

Attention!

Just before the windscreen is installed, press down expanding foam tape (1) using special tool 51 0 300 or reattach expanding foam tape (1). An expanding foam tape (1) that has become relaxed could change the position of the adhesive bead and thereby lead to wind noise or windscreen leaks.

Fig 4: Identifying Expanding Foam Tape

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, fit COVER/RUBBER FRAME (1) for windscreen.

Pre-treat adhesive area with Sika-Aktivator205.

Fig 5: Identifying Adhesive Tape And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Overview of windscreen bonding:

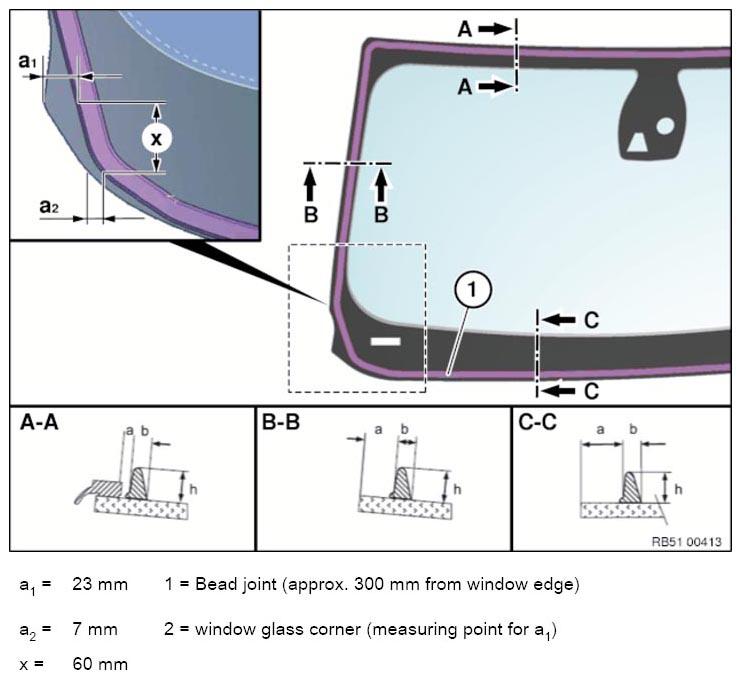

Fig 6: Overview Of Windscreen Bonding

Courtesy of BMW OF NORTH AMERICA, INC.

a₁ = 23 mm 1 = Bead joint (approx. 300 mm from window edge)

a₂ = 7 mm 2 = window glass corner (measuring point for a₁ )

x = 60 mm

Cut	A - A	B - B	C - C
a [mm] = Position adhesive bead	1 +1	3 +1	3 +1
b [mm] = Width adhesive bead	8 ±2	8 ±2	8 ±2
h [mm] = Height adhesive bead	12 -2	12 -2	12 -2

NOTE: Adhesive area for plastic adhesive tapes (1) must be free from grease and dust.

Stick two yellow plastic adhesive tapes (1) to roof at distance (A) from outside corners.

Length: 400 mm

A = 250 mm

Fig 7: Bonding Yellow Plastic Adhesive Tapes

Courtesy of BMW OF NORTH AMERICA, INC.

Perform the following steps carefully on windscreen (1) using siphon:

position windscreen first at top
Align sides evenly
then insert at bottom and press down
press upwards until sealing rests evenly on roof

Fig 8: Fixing Window Glass With Suction Lifter (51 3 010) And Adhesive Tapes
Courtesy of BMW OF NORTH AMERICA, INC.
Adjust gap dimensions (see next operation)
secure in terms of height in this position at top with two yellow plastic adhesive tapes (2)

Windscreen gap dimensions:

To avoid wind noises, the windscreen (1) must be lower than the roof outer skin (2).

Measure the short length (A) on the left and right using special tool 51 0 010 .

Rubber frame (3) must be even and in parallel to roof outer skin (2).

	F25	F26
(A) with HUD	3 ± 1 mm	5 ± 1.5 mm
(A) without HUD	3.4 ± 1.5 mm	5.5 ± 1.5 mm

Fig 9: Checking Windscreen Gap Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Only with camera-based driver support systems:

Carry out camera calibration via diagnosis system.

Under Service Functions menu:

Driver assistance
- Camera-based driver assistance systems
  - Calibration of camera-based driver support systems

In the case of replacement with appropriate version:

Version up to 04/2012:

Install new RAIN/LIGHT/SOLAR AND CONDENSATION SENSOR .

Version after 04/2012:

Remount RAIN/LIGHT/SOLAR AND CONDENSATION SENSOR .
