51 49 008 Removing and installing (replacing) trim for rear lid
Necessary preliminary work:
- Remove TRIM FOR REAR WINDOW FRAME on left/right
- Remove SWITCH FOR AUTOMATIC OPERATION OF TAILGATE
Removal:

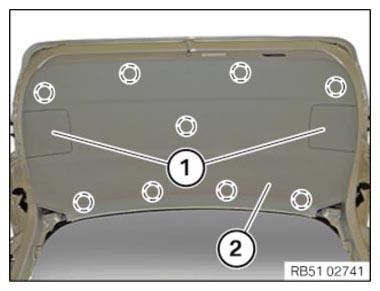

Remove covers (1) and release screws underneath.
Unclip trim panel (2) at marked locations and remove downwards.
Installation:
NOTE:

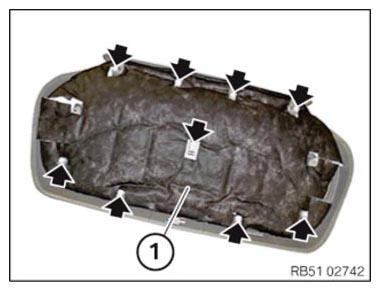

Replace the faulty clips on the trim panel (1).
Mount the trim panel (2) and clip it in at the marked locations.
Tighten the screws and install the covers (1).
