51 49 003 Removing and installing/replacing trim for rear window frame on left or right

Necessary preliminary work:

Removal:

Release screws (1).

Unclip trim (2) from clip (3) and feed out downwards.

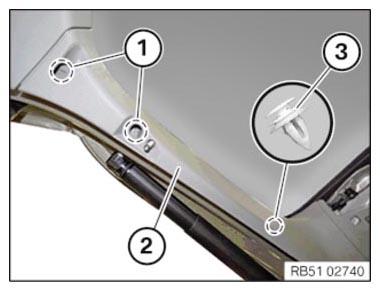

Fig 1: Identifying Rear Window Frame Trim Clip And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in trim (2) and attach to clip (3).

Tighten down the screws (1).

NOTE: Replace faulty clip (3).

Fig 2: Identifying Rear Window Frame Trim Clip And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
