61 31 084 Removing and installing/replacing switch for automatic tailgate activation

Special tools required:

Removal:

Lever switch for automatic operation of tailgate (1) out of tailgate trim panel (2) with special tool 00 9 327 .

Fig 1: Removing Tailgate Automatic Operation Switch Using Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) on switch for automatic operation of tailgate (2) and disconnect.

Fig 2: Identifying Tailgate Automatic Operation Switch And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Retaining clips on switch for automatic operation of tailgate (2) must not be missing or damaged.

Connect connector (1) to switch for automatic operation of tailgate (2).

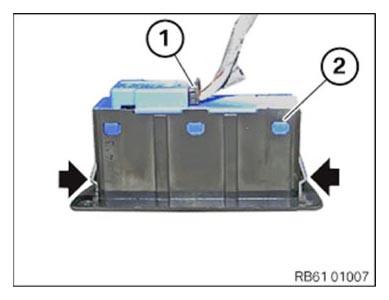

Fig 3: Locating Tailgate Automatic Operation Switch Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Insert switch for automatic operation of tailgate (1) into tailgate trim panel (2).

Fig 4: Installing Tailgate Automatic Operation Switch

Courtesy of BMW OF NORTH AMERICA, INC.
