51 47 316 Removing and installing/replacing carpet for rear passenger compartment

Necessary preliminary tasks:

• Remove BOTH FRONT SEATS
• Remove TRIM PANEL FOR DOOR POST, BOTTOM  left/right
• Remove COMPLETE CENTER CONSOLE
• Remove COVER FOR CENTRAL BASS SPEAKER

Feed back wiring harness (1).

Feed out carpet (2) to rear/top.

Installation note:

Make sure wiring harness (1) is laid correctly.

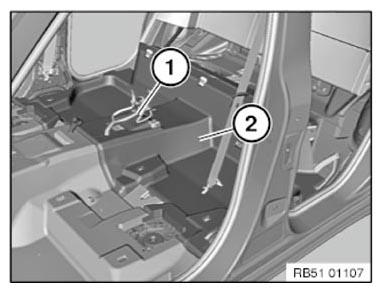

Fig 1: Identifying Wiring Harness And Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Similar to illustration.

Apertures (1) serve as alignment points when fitting carpet (2).

Fig 2: Identifying Apertures And Carpet

Courtesy of BMW OF NORTH AMERICA, INC.
