11 34 715 Replace all valve springs (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Remove CYLINDER HEAD .
Disassemble CYLINDER HEAD
Place cylinder head on special tool 11 9 001 .

Position special tool 11 9 008 with straight surface on combustion chamber side of cylinder head (see Fig 1).

NOTE: Procedure for all 4-, -6- and 8-cylinder diesel engines.

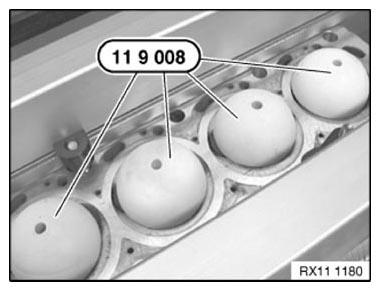

Fig 1: Positioning Special Tool (11 9 008)

G09953237

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 9 006 and lock with special tool 11 9 005 in direction of arrow.

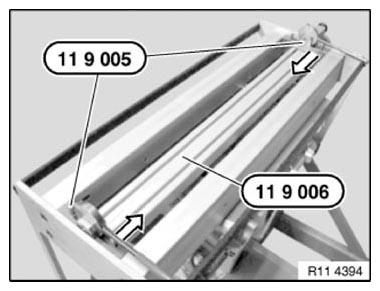

Fig 2: Inserting Special Tool (11 9 006)

G09953238

Courtesy of BMW OF NORTH AMERICA, INC.

Lock special tool 11 9 005 in direction of arrow.

Rotate cylinder head, using special tool 11 9 000 , 180° into installation position.

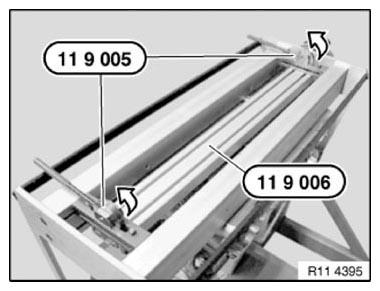

Fig 3: Rotating Cylinder Head

G09953239

Courtesy of BMW OF NORTH AMERICA, INC.

Align special tool 11 9 009 in direction of valve axis. Select corresponding groove in special tool 11 9 015 .

Press down valve spring on upper spring cup with special tool 11 9 009 .

Hook in with special tool 11 9 011 .

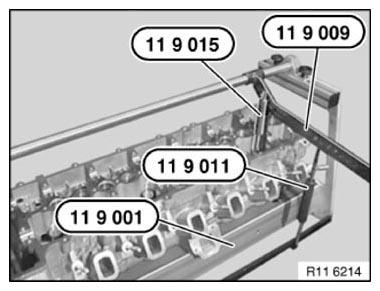

Fig 4: Aligning Special Tool (11 9 009)

G09953240

Courtesy of BMW OF NORTH AMERICA, INC.

Remove valve keys.

Remove valve spring and spring cup.

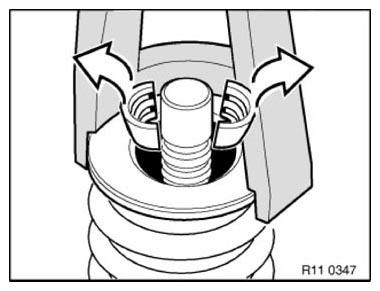

Fig 5: Removing Valve Keys

G09953241

Courtesy of BMW OF NORTH AMERICA, INC.

Installation sequence:

Valve
Valve stem seal
Valve spring
Top spring cup
Valve keys

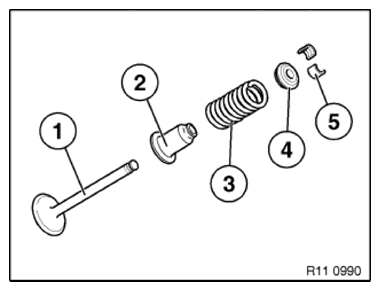

Fig 6: Identifying Valve Components
Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace VALVE STEM SEALS .

Assemble engine.
