11 34 560 Replace all valve stem seals (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 1 960
11 6 370
11 6 380

Necessary preliminary work:

Remove CYLINDER HEAD .
Remove all VALVE SPRINGS .

Press special tool 11 6 370 onto valve stem seal and turn.

Pull out special tool 11 6 370 together with valve stem seal.

Fig 1: Pressing Special Tool (11 6 370) Onto Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate valve stem and fit special tool 11 1 960 .

Coat new valve stem seal (1) with oil and install.

Detach special tool 11 1 960 .

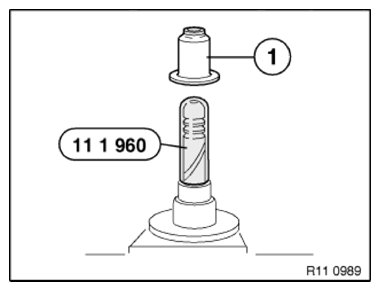

Fig 2: Identifying Valve Stem Seal And Special Tool (11 1 960)

Courtesy of BMW OF NORTH AMERICA, INC.

Press on valve stem seal with special tool 11 6 380 to the limit position.

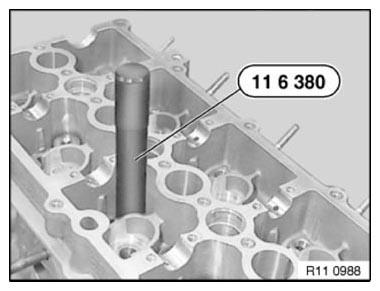

Fig 3: Identifying Special Tool (11 6 380)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
