11 66 000 Removing and installing/replacing vacuum pump (N55) from March 2012

Special tools required:

• 11 0 290
• 11 4 120
• 11 8 650

Necessary preliminary tasks:

• Remove DRIVE BELT .
• Remove TENSIONER  for drive belt.
• Remove SEALING COVER  for vacuum pump.
• Remove SEALING CAP  of chain tensioner for oil pump.
• Remove HIGH PRESSURE PUMP .
• Disconnect vacuum line from vacuum pump.

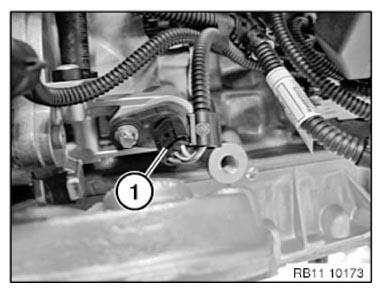

Unlock connector (1) on vacuum pump and disconnect.

Fig 1: Identifying Vacuum Pump Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate crankshaft at central bolt.

Turn sprocket wheel until drilled holes and screws of vacuum pump match up.

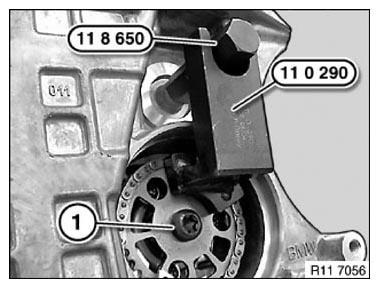

Screw in special tool 11 8 650 .

Secure special tool 11 0 290 in sprocket and to special tool 11 8 650 .

Release screw (1).

Tightening torque: 11 66 2AZ .

Fig 2: Securing Special Tool 11 0 290 In Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

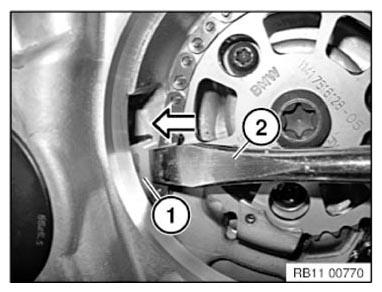

Carefully press tensioning rail (1) with a suitable screwdriver (2) in direction of arrow.

As the oil pressure in the chain tensioner can only be drained pulsating, the tensioning rail (1) must be pressed several times.

Fig 3: Pressing Tensioning Rail

Courtesy of BMW OF NORTH AMERICA, INC.

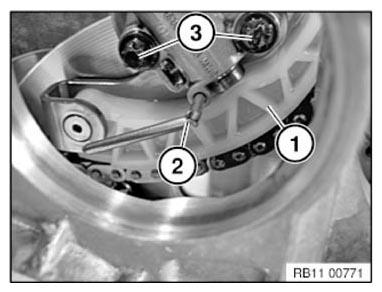

Press the tensioning rail (1) and hold down.

Fix chain tensioner piston in position with a suitable lock pin (2).

Fig 4: Adjusting Chain Tensioner Piston Position

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 11 66 1AZ .

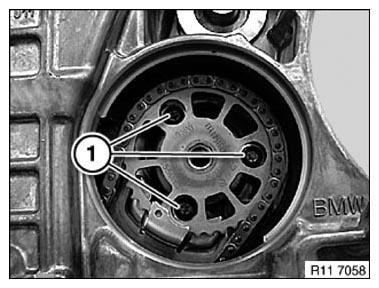

Release screws (1).

Secure screws (1) against falling out.

Fig 5: Identifying Chain Tensioner And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

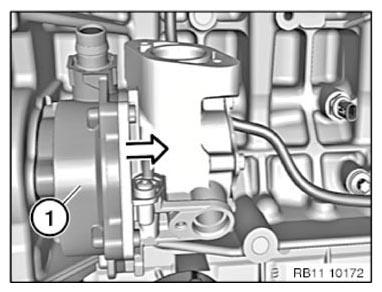

Remove vacuum pump (1) in direction of arrow.

Installation note:

Replace seal.

Fig 6: Removing Vacuum Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
