11 65 010 Removing and installing/replacing pressure accumulator (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove both exhaust turbochargers . See 11 65 025 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, RIGHT, CYLINDERS 1-4 (N63) or 11 65 030 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, LEFT, CYLINDERS 5-8 (N63) .
Remove both EXHAUST MANIFOLDS .
Remove HEAT SHIELD at bottom

Release banjo bolt (1).

Tightening torque: 11 42 3AZ .

Installation note:

Replace sealing ring.

Release screw (3) on engine oil line.

Remove engine oil line (2).

Release screws (3) on vacuum reservoir (4).

Tightening torque: 11 65 6AZ .

Remove vacuum reservoir (4).

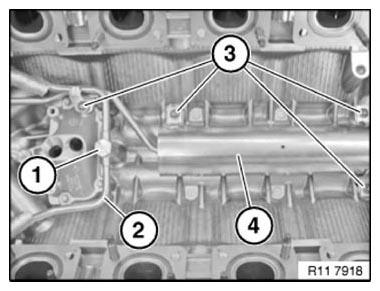

Fig 1: Identifying Engine Oil Line, Screws And Vacuum Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Check VACUUM CONNECTIONS for correct routing.

Check VACUUM SYSTEM FOR LEAKS .

Assemble engine.
