11 65 Connection diagram, vacuum activation (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

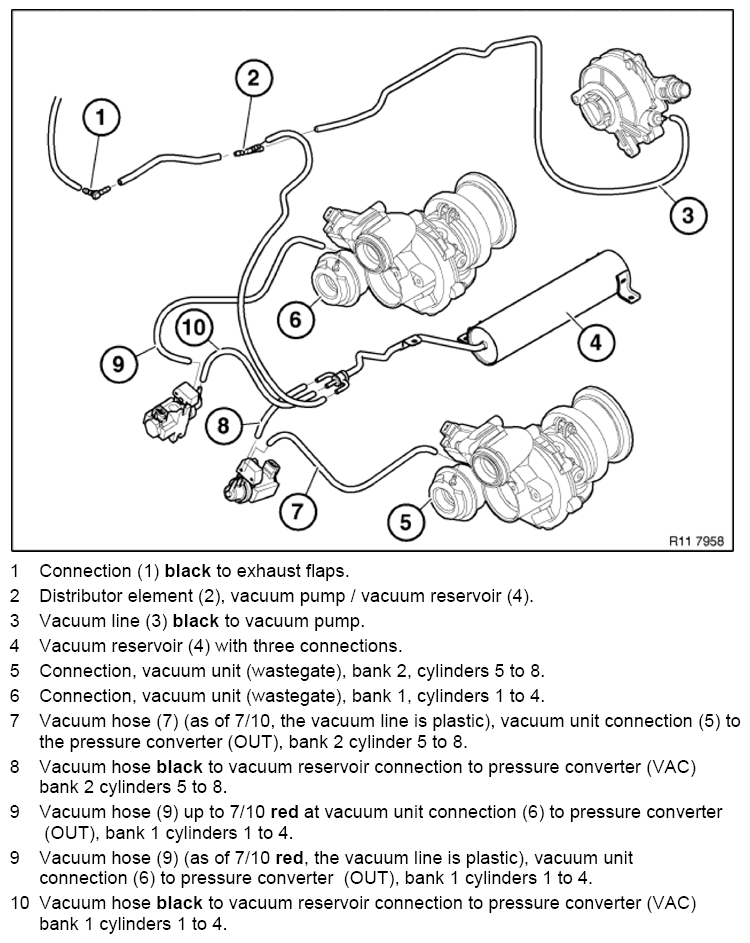

Fig 1: Vacuum Activation Connection Diagram
G09954240Courtesy of BMW OF NORTH AMERICA, INC.
  1. Connection (1) black  to exhaust flaps.
  2. Distributor element (2), vacuum pump/vacuum reservoir (4).
  3. Vacuum line (3) black  to vacuum pump.
  4. Vacuum reservoir (4) with three connections.
  5. Connection, vacuum unit (wastegate), bank 2, cylinders 5 to 8.
  6. Connection, vacuum unit (wastegate), bank 1, cylinders 1 to 4.
  7. Vacuum hose (7) yellow  up to 7/10 at vacuum unit connection (5) to pressure converter (OUT), bank 2 cylinders 5 to 8.
  1. 7 Vacuum hose (7) (as of 7/10, the vacuum line is plastic), vacuum unit connection (5) to the pressure converter (OUT), bank 2 cylinder 5 to 8.
  2. 8 Vacuum hose black to vacuum reservoir connection to pressure converter (VAC) bank 2 cylinders 5 to 8.
  3. 9 Vacuum hose (9) up to 7/10 red  at vacuum unit connection (6) to pressure converter (OUT), bank 1 cylinders 1 to 4.
  4. 9 Vacuum hose (9) (as of 7/10 red  , the vacuum line is plastic), vacuum unit connection (6) to pressure converter (OUT), bank 1 cylinders 1 to 4.
  5. 10 Vacuum hose black  to vacuum reservoir connection to pressure converter (VAC) bank 1 cylinders 1 to 4.
